2626677

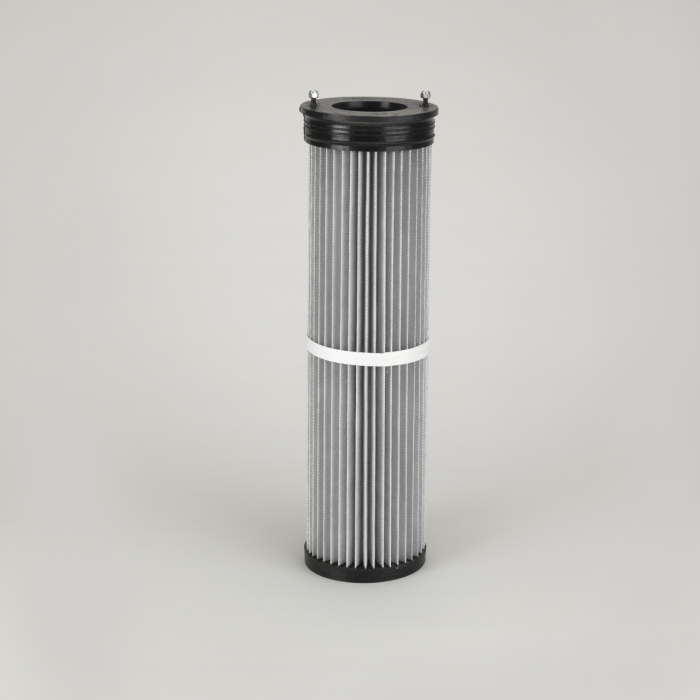

Cartridge Filter with open top end cap and closed bottom end cap in Polyester Spunbond Anti-Static, 143 mm outer diameter x 760 mm long; Special features: With 2 bolts and earthed for WAM and other brands of cartridge collectors

Diameter (mm)	143
Inner Diameter (mm)	82
Length (mm)	760
Media	Polyester Anti-Static
Media Weight (g/m²)	115
Area (m²)	1.39
Unit Family	TD / ECB / DFP / PT1001
Top End Cap Design	Open (2 bolts)
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	No Gasket
Pleath Height (mm)	51
Number of Pleats	323
Max. Temp (°C)	60
Volume (m³)	0.06105
Weight (kg)	2.016
