2626981-000-440

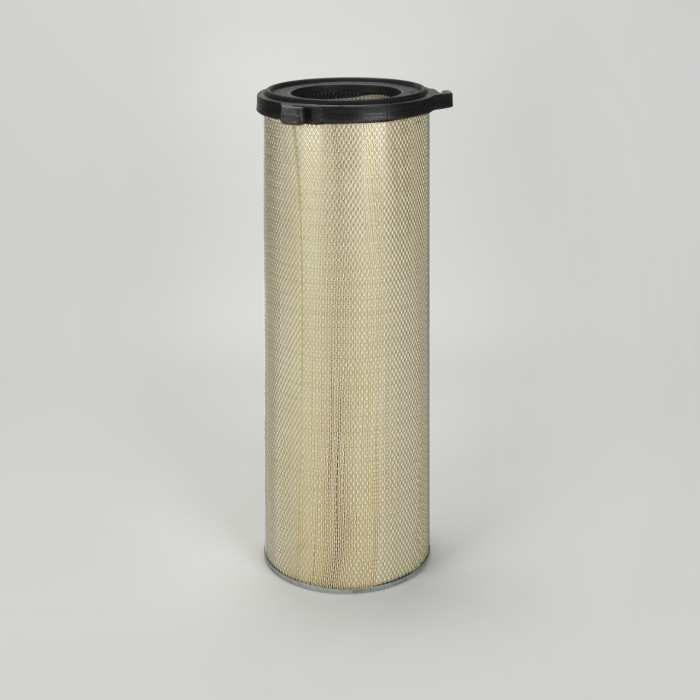

Cartridge Filter with open top end cap with 3 hooks, 366 mm pitch diameter and closed bottom end cap in Cellulose Flame Retardant, 325 mm outer diameter x 1018 mm long including top gasket; Special features: Dirty Air Plenum and Clean Air Plenum installation for Coral and other brands of cartridge collectors

Diameter (mm)	325
Inner Diameter (mm)	213
Length (mm)	1018
Media	Cellulex Flame Retardant
Media Weight (g/m²)	104
Area (m²)	31.4
Unit Family	DFT / DF+
Pitch Diameter (mm)	366
Top End Cap Design	Open with 3 Hooks Small
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	Yes
Outer Liner	Yes
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above and Below Top End Cap
Pleath Height (mm)	50
Number of Pleats	364
Max. Temp (°C)	60
Volume (m³)	0.181548
Weight (kg)	13
