2626908-000-440

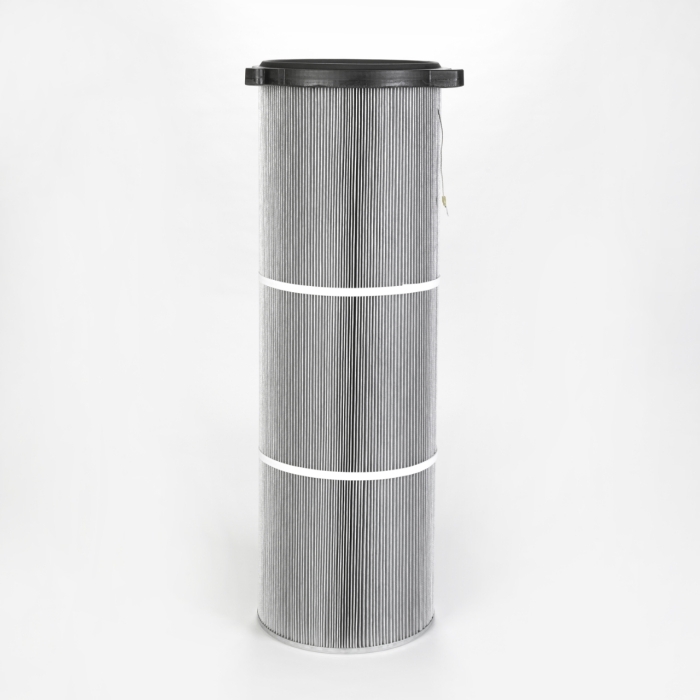

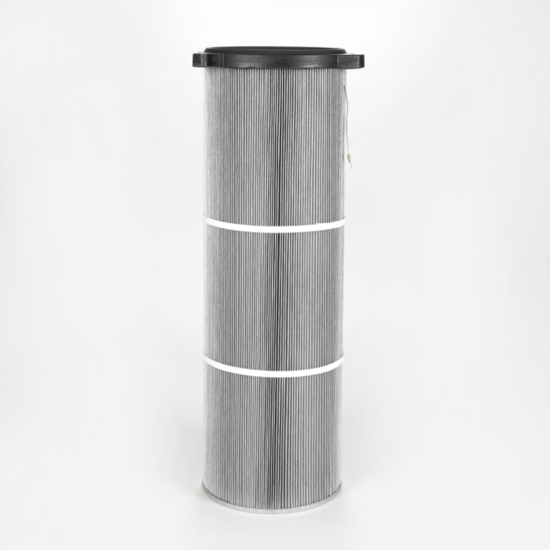

Cartridge Filter with open top end cap with 3 hooks, 366 mm pitch diameter and closed bottom end cap in Ultra-Web Spunbond Anti-Static, 325 mm outer diameter x 1218 mm long including top gasket; Special features: Earthed, Dirty Air Plenum installation, top end cap in Polyurethane and bottom end cap in Galvanized Steel for Coral and other brands of cartridge collectors

Diameter (mm)	325
Inner Diameter (mm)	213
Length (mm)	1218
Media	Ultra-Web Spunbond Antistatic
Media Weight (g/m²)	270
Area (m²)	16.2
Unit Family	Quick Fix 3
Pitch Diameter (mm)	366
Top End Cap Design	Open with 3 Hooks Small
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Top End Cap Polyurethane and Bottom End Cap Zinc Plated Steel
Gasket Position	Above Top End Cap
Max. Temp (°C)	60
Volume (m³)	0.220416
Weight (kg)	10.51
