2625753

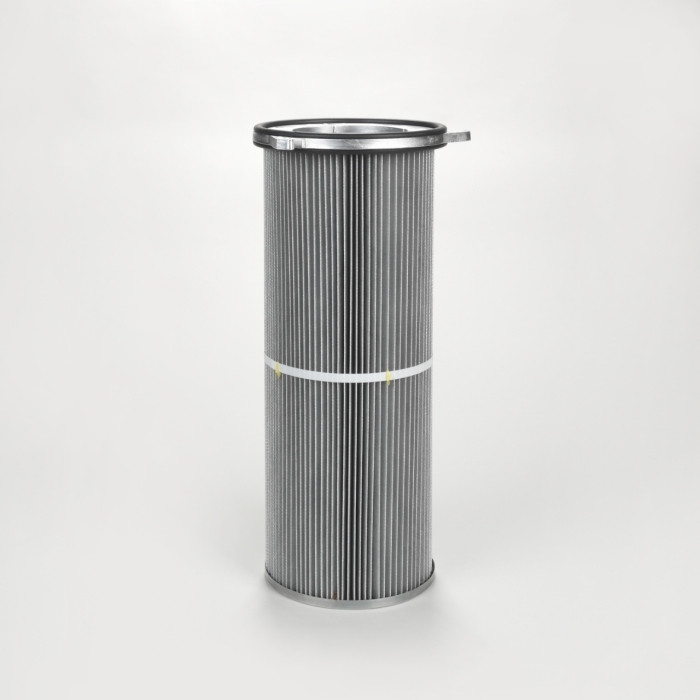

Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Ultra-Web Spunbond Anti-Static, 145 mm outer diameter x 1200 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Coral and other brands of cartridge collectors

Diameter (mm)	145
Inner Diameter (mm)	80
Length (mm)	1000
Media	Ultra-Web Spunbond Antistatic
Media Weight (g/m²)	260
Area (m²)	3.25
Unit Family	JETPACK B & C
Pitch Diameter (mm)	180
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above and Below Top End Cap
Max. Temp (°C)	93
Volume (m³)	0.047187
Weight (kg)	2.53
