2625744

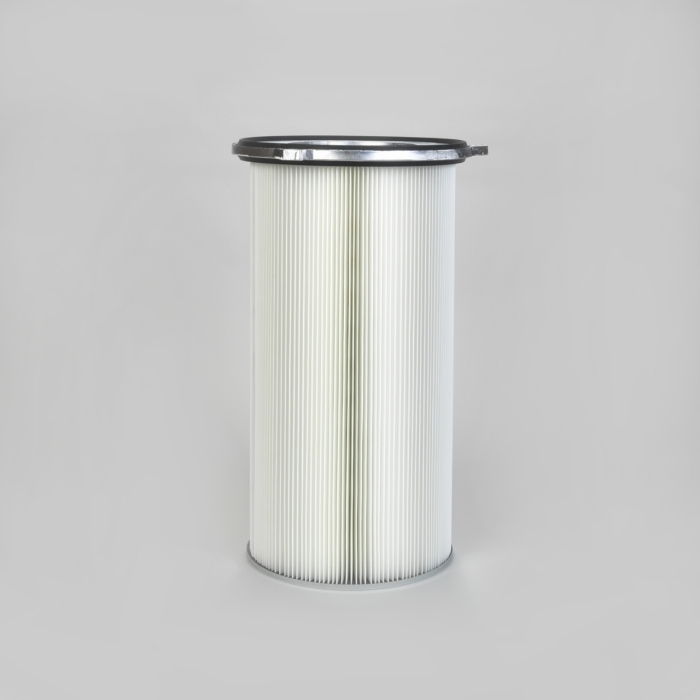

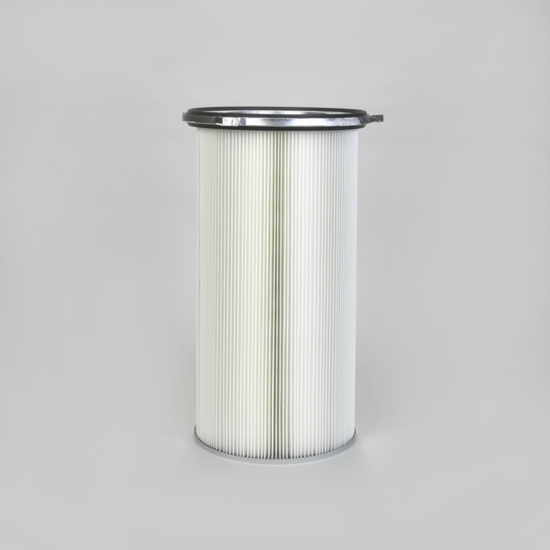

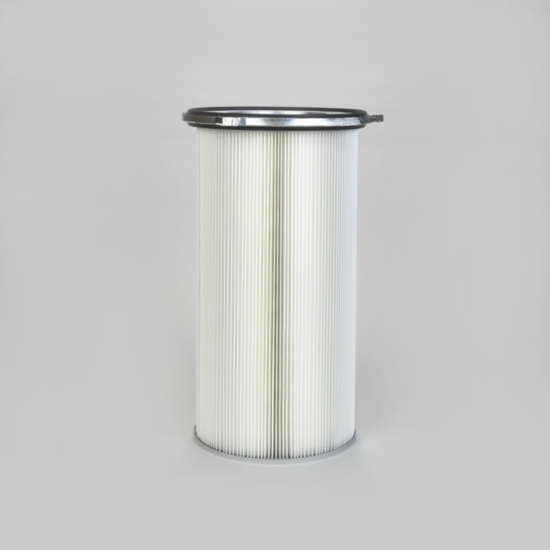

Cartridge Filter with open top end cap with 3 hooks, 207 mm pitch diameter and closed bottom end cap in Ultra-Web Spunbond, 156 mm outer diameter x 600 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Series 156 and other brands of cartridge collectors

Diameter (mm)	156
Inner Diameter (mm)	84-85
Length (mm)	600
Media	Ultra-Web Spunbond
Area (m²)	1.95
Unit Family	Quick Fix 3
Pitch Diameter (mm)	207
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above and Below Top End Cap
Max. Temp (°C)	93
Volume (m³)	0.03801
Weight (kg)	2.12
