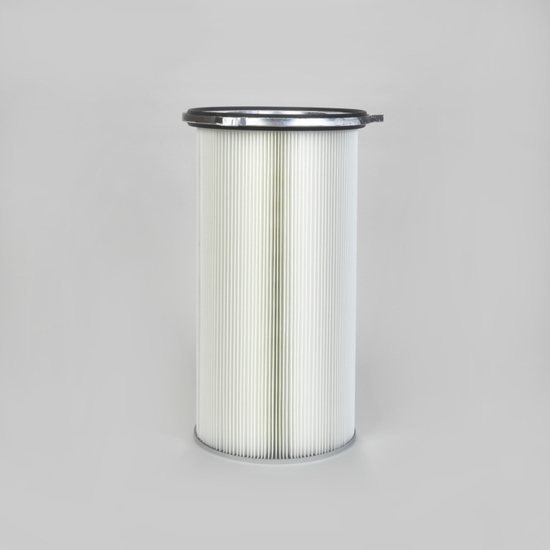

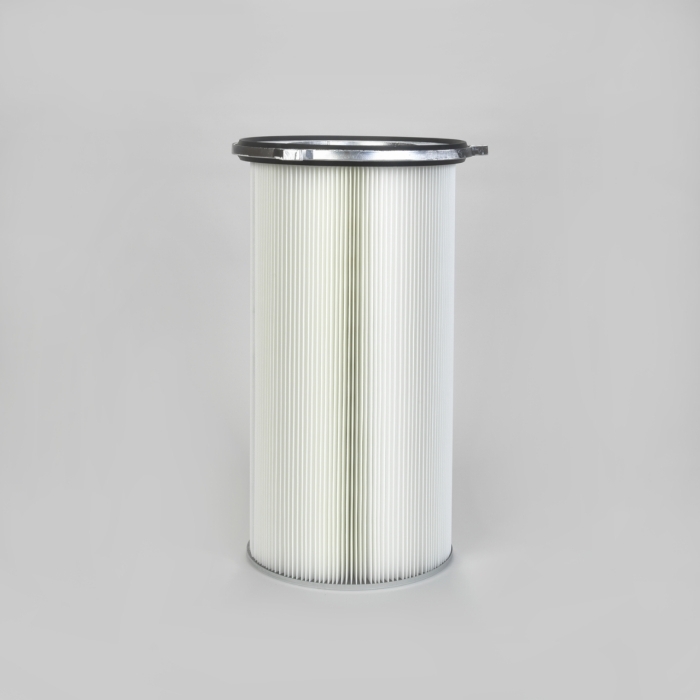

CARTRIDGE QUICK FIX 3 HOOK ULTRA-WEB SB OD 325 MM X L 660 MM EARTHED DAP & CAP
CARTRIDGE QUICK FIX 3 HOOK ULTRA-WEB SB OD 325 MM X L 660 MM EARTHED DAP & CAP

2625649

CARTRIDGE QUICK FIX 3 HOOK ULTRA-WEB SB OD 325 MM X L 660 MM EARTHED DAP & CAP

Your price: €184.13
List price:  €202.35

Files

Media Data Sheet Filter Data Sheet

Details

Cartridge Filter with open top end cap with 3 hooks, 397 mm pitch diameter and closed bottom end cap in Ultra-Web Spunbond, 325 mm outer diameter x 660 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Series 325 and other brands of cartridge collectors

Attributes

Diameter (mm) 325
Inner Diameter (mm) 213
Length (mm) 660
Media Ultra-Web Spunbond
Media Weight (g/m²) 260
Area (m²) 8.91
Unit Family MultiDust Bank
Pitch Diameter (mm) 397
Top End Cap Design Open with 3 Hooks
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Outer Liner No
End Cap/Liner Material Galvanized Steel
Gasket Position Above and Below Top End Cap
Pleath Height (mm) 51
Number of Pleats 172
Max. Temp (°C) 93
Volume (m³) 0.127581
Weight (kg) 6.91
