2627201-000-440

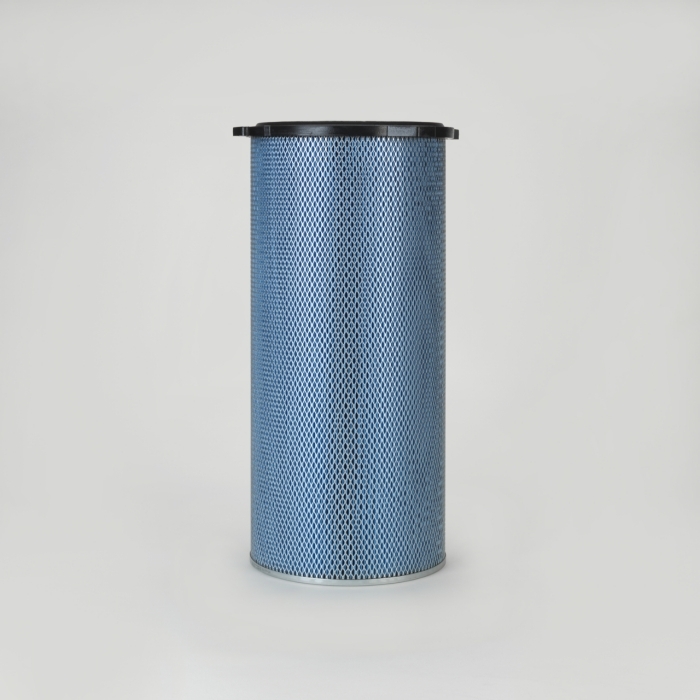

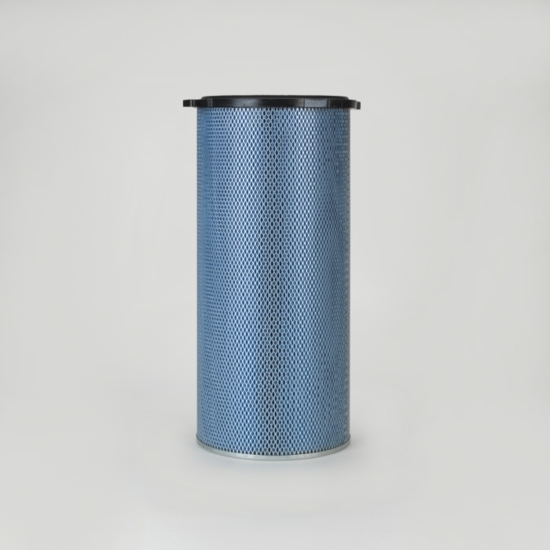

Cartridge Filter with open top end cap with 4 hooks, 366 mm pitch diameter and closed bottom end cap in Ultra-Web Flame Retardant, 325 mm outer diameter x 745 mm long including top gasket; Special features: With outer liner, Dirty Air Plenum for Coral and other brands of cartridge collectors

Diameter (mm)	325
Inner Diameter (mm)	213
Length (mm)	745
Media	Ultra-Web Flame Retardant
Area (m²)	17
Unit Family	DFO / DFPRO
Pitch Diameter (mm)	366
Top End Cap Design	Open with 4 Hooks
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	Yes
Outer Liner	Yes
End Cap/Liner Material	Top end cap Polyurethane and Bottom end cap Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	38
Number of Pleats	315
Max. Temp (°C)	60
Volume (m³)	0.13784
Weight (kg)	10
