2627095-000-440

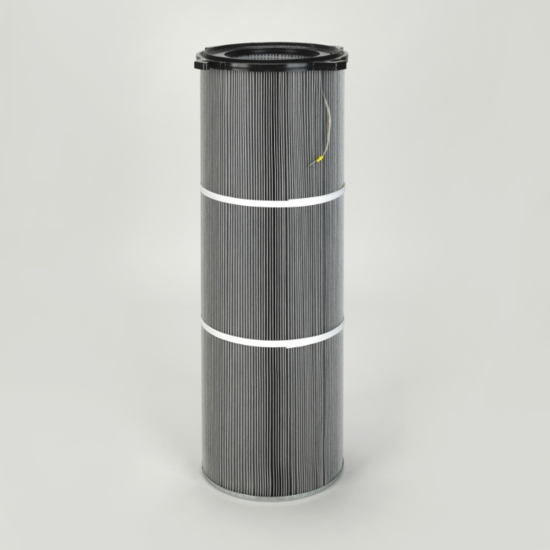

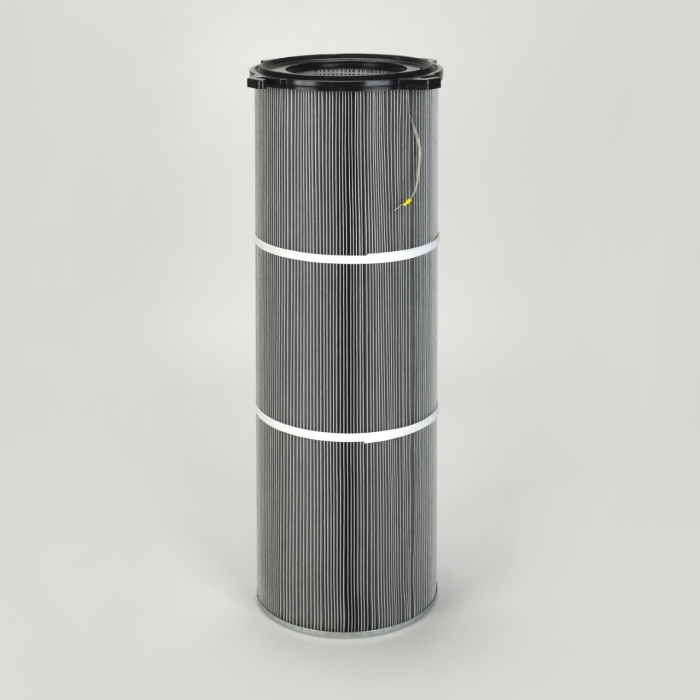

Cartridge Filter with open top end cap with 4 hooks, 366 mm pitch diameter and closed bottom end cap in Ultra-Web Spunbond Anti-Static, 325 mm outer diameter x 1000 mm long including top gasket; Special features: Dirty Air Plenum installation and earthed for Indest, Coral and other brands of cartridge collectors

Diameter (mm)	325
Inner Diameter (mm)	214
Length (mm)	1000
Media	Ultra-Web Spunbond Antistatic
Area (m²)	16.8
Unit Family	Quick Fix 3
Pitch Diameter (mm)	366
Top End Cap Design	Open with 4 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Top End Cap Polyurethane and Bottom End Cap Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	47
Number of Pleats	175
Max. Temp (°C)	60
Volume (m³)	0.17986
Weight (kg)	10.23
