P033087-016-436

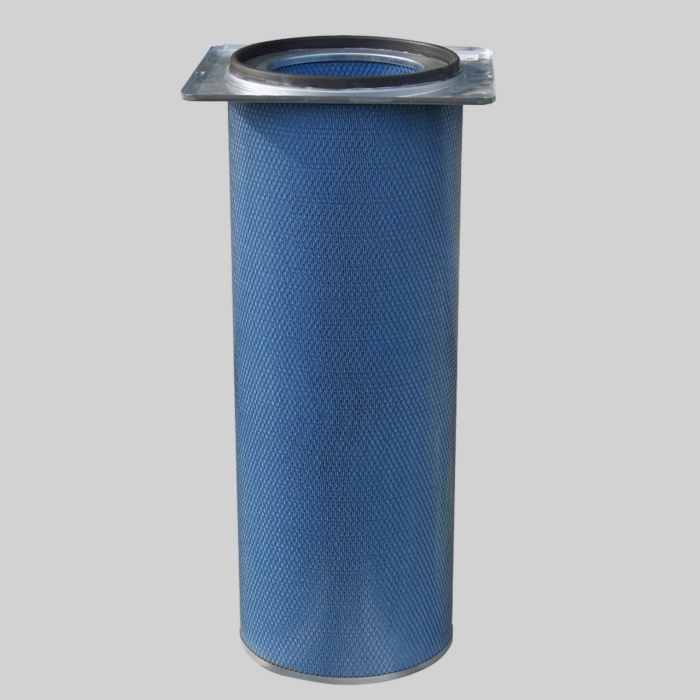

Ultra-Web Cartridge Filter, 324 mm outer diameter x 381 mm long (12.74-inch outer diameter x 15.00-inches long), Open/Closed Endcaps with 361 mm x 406 mm Rectangle Flange (14.22-inch x 15.98-inch Rectangle Flange) for Camfil Farr Tenkay and other brands of cartridge collectors.

Diameter (mm)	324
Inner Diameter (mm)	211
Length (mm)	381
Media	Ultra-Web
Media Weight (g/m²)	114
Area (m²)	11.98
Unit Family	Farr-Tenkay
Top End Cap Design	Open (Square)
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Outer Liner	Yes
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	50.8
Number of Pleats	313
Max. Temp (°C)	82
Volume (m³)	0.061704006208
