2627355-000-440

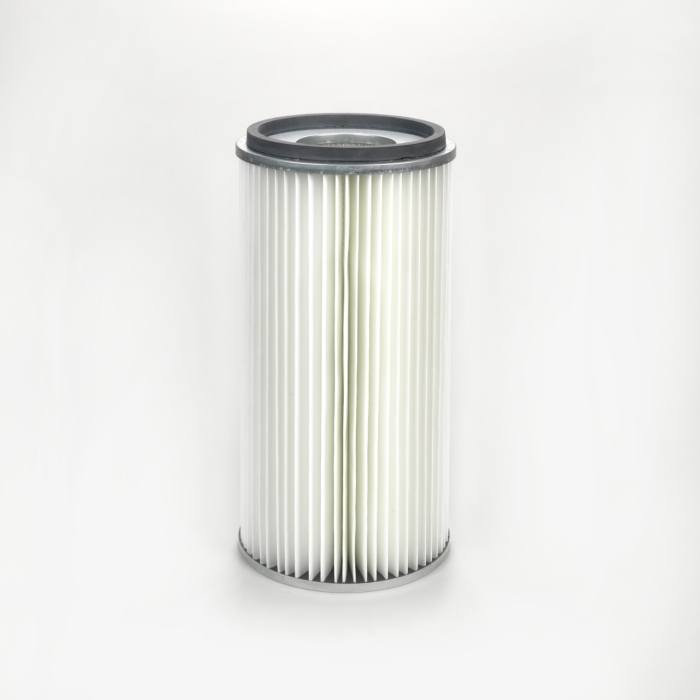

CARTRIDGE CLOSED WITH HOLE 13 MM (TD SMALL-STYLE) STANDARD POLYESTER OD 202 MM X L 406 MM EARTHED

Your price: €63.29
List price:  €69.55

Files

Filter Data Sheet Media Data Sheet

Details

TDsmall-style Cartridge Filter in Standard Polyester, 202 mm outer diameter x 406 mm long; Special feature: Earthed with open/closed (13.5mm bolt hole) end caps for Small TD and other brands of cartridge collectors

Attributes

Diameter (mm) 202
Inner Diameter (mm) 91
Length (mm) 406
Media #REF!
Media Weight (g/m²) 250
Area (m²) 2.85
Unit Family TD Small
Bottom End Cap Design Closed with hole 13.5 mm
Earthed Yes
Flame Retardant No
Top End Cap Design Open
Outer Liner No
Gasket Position Above Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 51
Number of Pleats 69
Max. Temp (°C) 65
Volume (m³) 0.020328
Weight (kg) 1.71
