2627343E-000-440

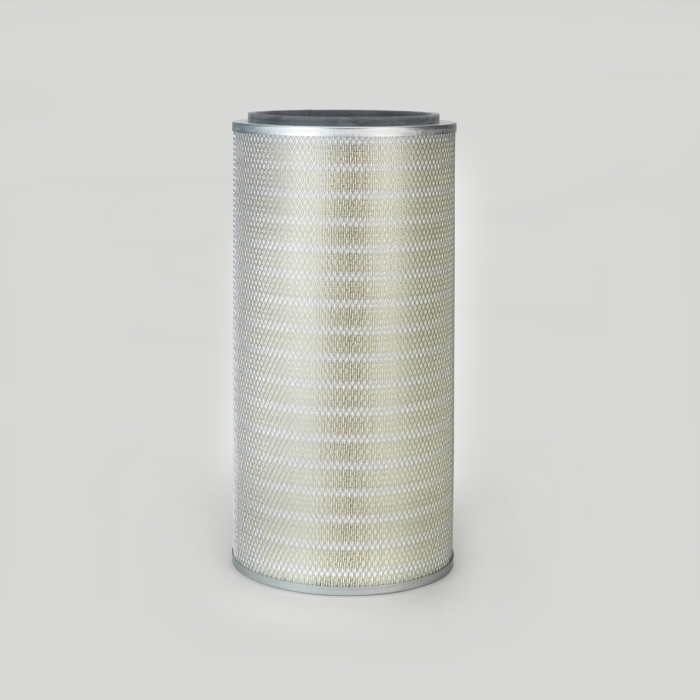

CARTRIDGE CLOSED WITH HOLE 13 MM (TD-STYLE) BLENDED 80/20 OD 324 MM X L 660 MM OUTER LINER EARTHED

Your price: €106.67
List price:  €117.22

Files

Media Data Sheet Filter Data Sheet

Details

TD-style Cartridge Filter in Blended 80/20, 324 mm outer diameter x 660 mm long; Special features: With outer liner, earthed and with open/closed (13.5mm bolt hole) end caps for ECB, TD and other brands of cartridge collectors

Attributes

Diameter (mm) 324
Inner Diameter (mm) 213
Length (mm) 660
Media #REF!
Media Weight (g/m²) 130
Area (m²) 21.2
Unit Family TD / ECB / DFP / PT1001
Bottom End Cap Design Closed with hole 13.5 mm
Earthed Yes
Flame Retardant No
Top End Cap Design Open
Outer Liner Yes
Gasket Position Above Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 50
Number of Pleats 323
Max. Temp (°C) 65
Volume (m³) 0.0959
Weight (kg) 6.966
