2625861

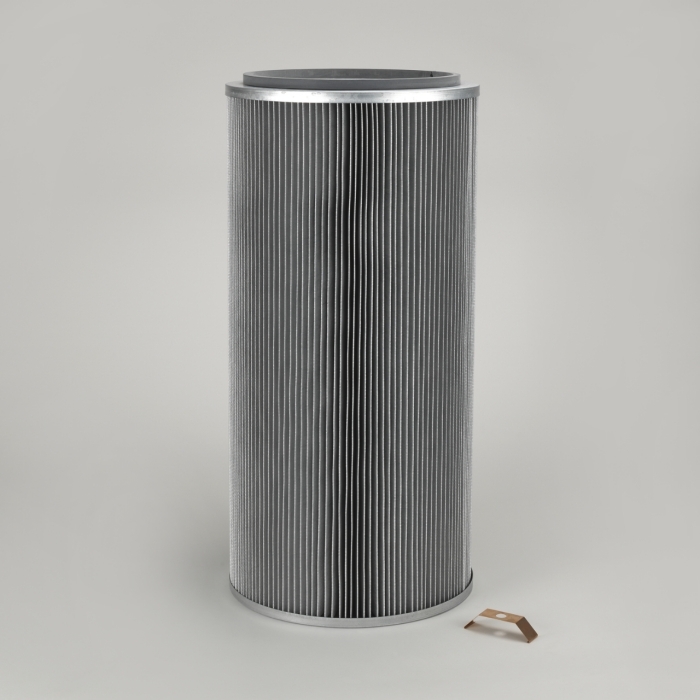

Cartridge Filter with open top end cap and closed bottom end cap with hole of 15 mm in Ultra-Web Spunbond Anti-Static, 324 mm outer diameter x 764 mm long; Special feature: Earthed for Plymovent and other brands of cartridge collectors

Diameter (mm)	324
Inner Diameter (mm)	213
Length (mm)	764
Media	#REF!
Media Weight (g/m²)	260
Area (m²)	12.4
Unit Family	MultiDust Bank
Bottom End Cap Design	Closed with hole 15 mm
Earthed	Yes
Flame Retardant	No
Top End Cap Design	Open
Outer Liner	No
Gasket Position	Above Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	51
Number of Pleats	171
Max. Temp (°C)	93
Volume (m³)	0.119232
Weight (kg)	7.4
