2626911-000-440

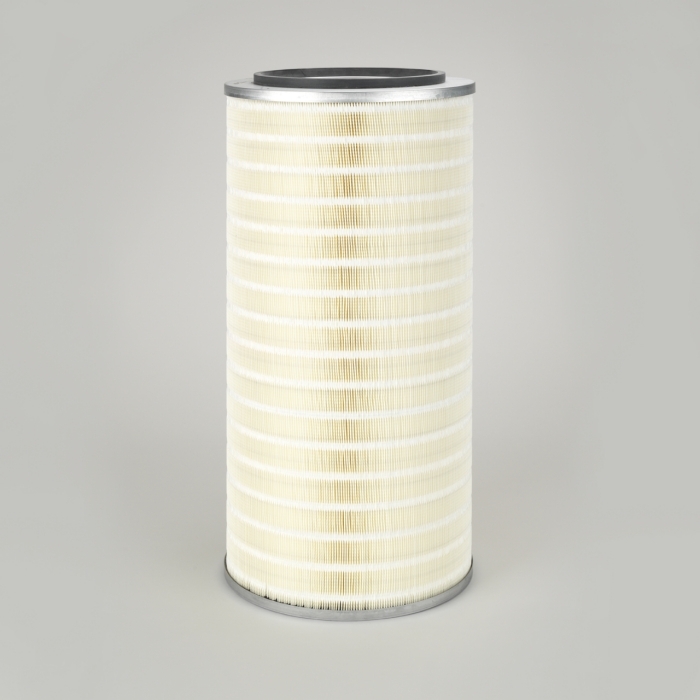

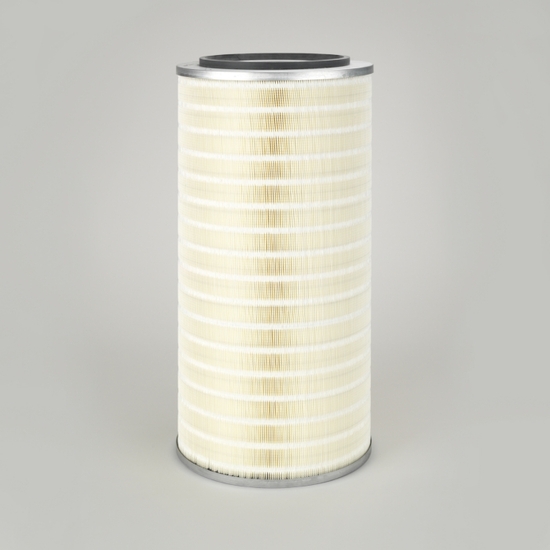

DF-style Cartridge Filter in Blended 80/20, 324 mm outer diameter x 660 mm long with open/open end caps; Special feature: No outer liner for Downflo (DF) and other brands of cartridge collectors

Diameter (mm)	324
Inner Diameter (mm)	213
Length (mm)	660
Media	Blended 80/20
Media Weight (g/m²)	250
Area (m²)	21
Unit Family	Quick Fix 3
Top End Cap Design	Open
Bottom End Cap Design	Open
Earthed	No
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	49
Number of Pleats	179
Max. Temp (°C)	65
Volume (m³)	0.094608
Weight (kg)	6.03
