2626537

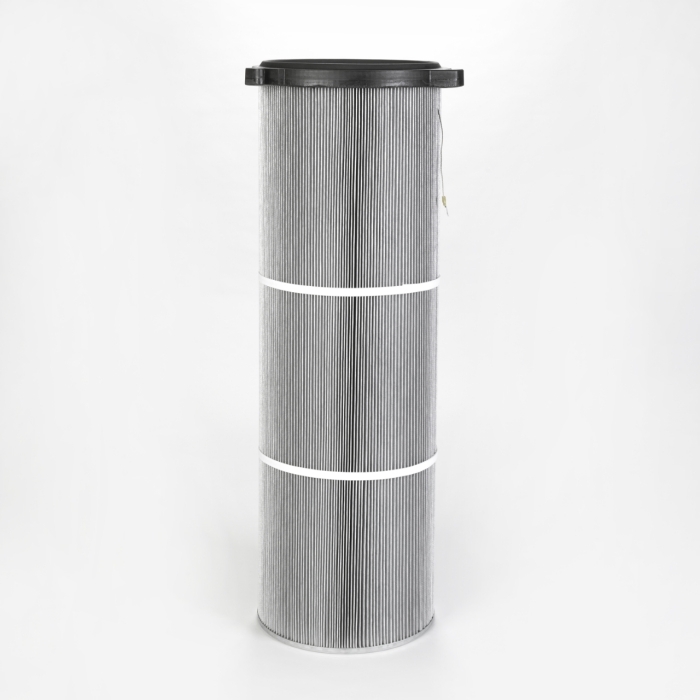

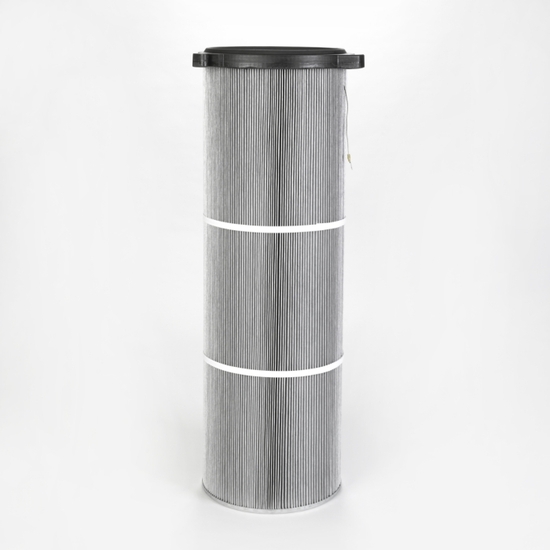

Cartridge Filter with open top end cap with 3 hooks, 170 mm pitch diameter and closed bottom end cap in Polyester Spunbond Anti-Static, 135 mm outer diameter x 1513 mm long including top gasket; Special features: Filter area 2.64 m², Dirty Air Plenum and Clean Air Plenum installation, earthed for Quick Fix and other brands of cartridge collectors

Diameter (mm)	135
Inner Diameter (mm)	95
Length (mm)	1513
Media	#REF!
Media Weight (g/m²)	270
Area (m²)	2.64
Unit Family	Quick Fix 3
Pitch Diameter (mm)	170
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Top End Cap Design	Open with 3 Hooks
Outer Liner	No
Gasket Position	Above and Below Top End Cap
End Cap/Liner Material	Polyurethane
Pleath Height (mm)	22
Number of Pleats	40
Max. Temp (°C)	60
