2626549

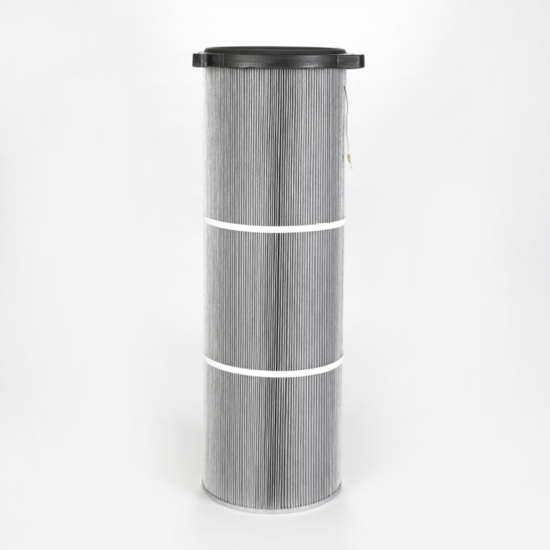

CARTRIDGE QUICK FIX 3 HOOK POLYESTER ANTI-STATIC OD 145 MM X L 1515 MM 3.74 M² CAP & DAP

Your price: €98.63
List price:  €108.39

Files

Media Data Sheet Filter Data Sheet

Details

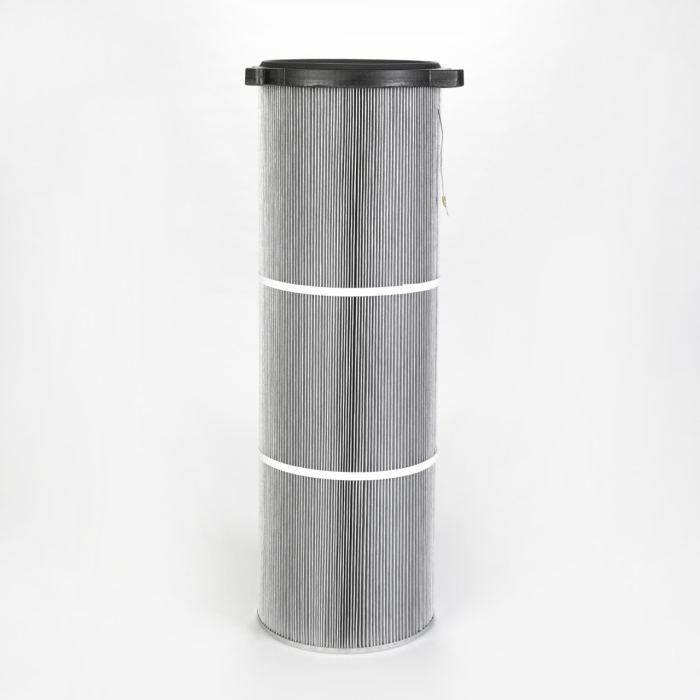

Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Polyester Spunbond Anti-Static, 145 mm outer diameter x 1515 mm long including top gasket; Special features: Filter area 3.74 m², Dirty Air Plenum and Clean Air Plenum installation, earthed for Series 145 and other brands of cartridge collectors

Attributes

Diameter (mm) 145
Inner Diameter (mm) 94
Length (mm) 1515
Media #REF!
Media Weight (g/m²) 270
Area (m²) 3.74
Unit Family Quick Fix 3
Pitch Diameter (mm) 180
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Polyurethane
Pleath Height (mm) 25
Number of Pleats 50
Max. Temp (°C) 60
Volume (m³) 0.08464
Weight (kg) 3.92
