2627190-000-440

CARTRIDGE QUICK FIX 3 HOOK POLYESTER ANTI-STATIC OD 145 MM X L 1515 MM DAP & CAP

Your price: €95.55
List price:  €105.01

Files

Media Data Sheet

Details

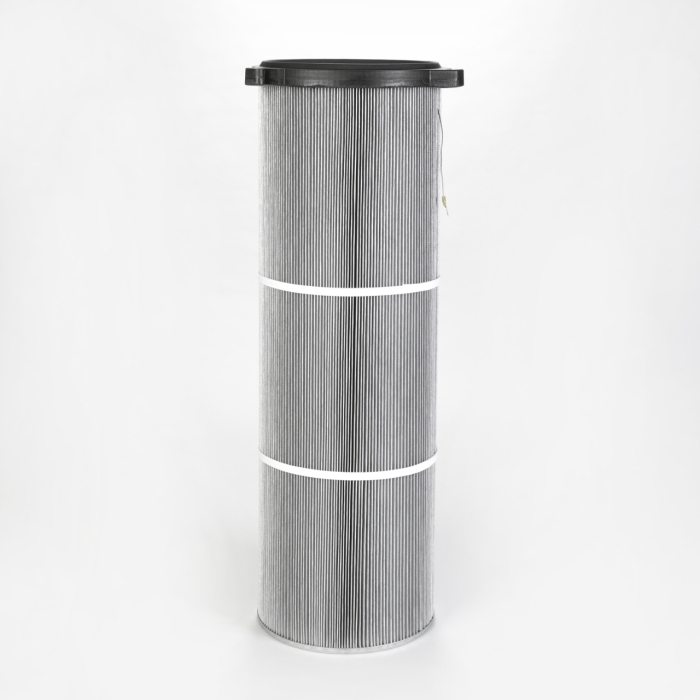

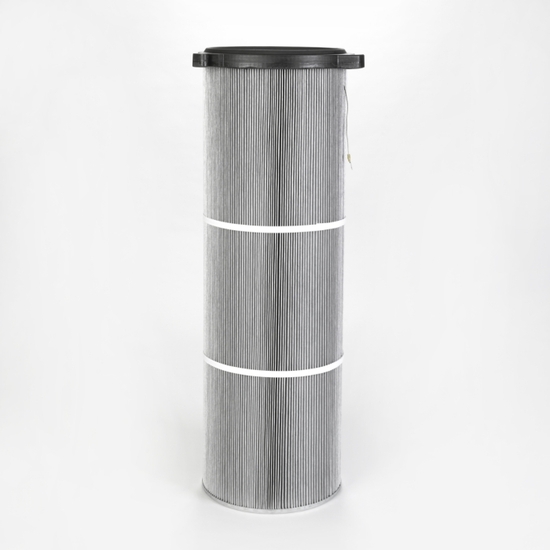

Cartridge Filter with open end cap with 3 hooks and pitch diameter 180 mm in Polyester Spunbond Anti-Static, 145 mm outer diameter x 1515 mm long including top gasket; Special features: Dirty Air Plenum and Clean Air Plenum installation for Tama and other brands of cartridge collectors

Attributes

Diameter (mm) 145
Inner Diameter (mm) 94
Length (mm) 1515
Media #REF!
Media Weight (g/m²) 270
Area (m²) 5.4
Unit Family Quick Fix 3
Pitch Diameter (mm) 180
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Polyurethane
Pleath Height (mm) 25
Number of Pleats 75
Max. Temp (°C) 60
Volume (m³) 0.08252
Weight (kg) 4.01
