2626999-000-440

CARTRIDGE QUICK FIX 3 HOOK POLYESTER ANTI-STATIC OD 145 MM X L 1515 MM WITH VENTURI DAP & CAP

Your price: €98.35
List price:  €108.08

Files

Media Data Sheet Filter Data Sheet

Details

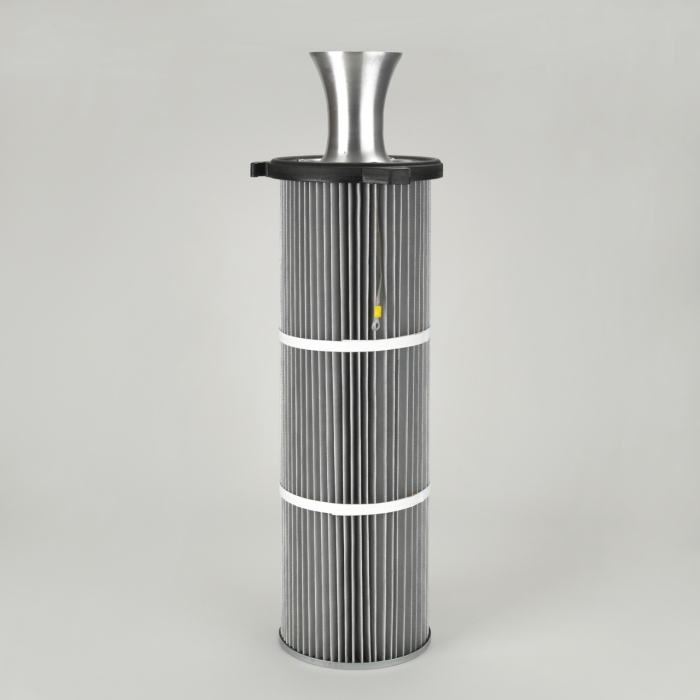

Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Polyester Spunbond Anti-Static, 145 mm outer diameter x 1515 mm long including top gasket; Special features: With venturi, Dirty Air Plenum and Clean Air Plenum installation, earthed for TAMA and other brands of cartridge collectors

Attributes

Diameter (mm) 145
Inner Diameter (mm) 94
Length (mm) 1515
Media #REF!
Media Weight (g/m²) 270
Area (m²) 5.61
Unit Family Quick Fix 3
Pitch Diameter (mm) 180
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Polyurethane
Pleath Height (mm) 25
Number of Pleats 75
Max. Temp (°C) 60
Volume (m³) 0.09216
