2626567

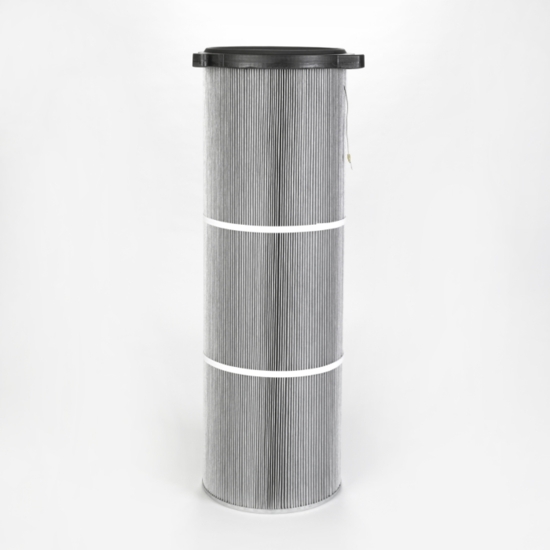

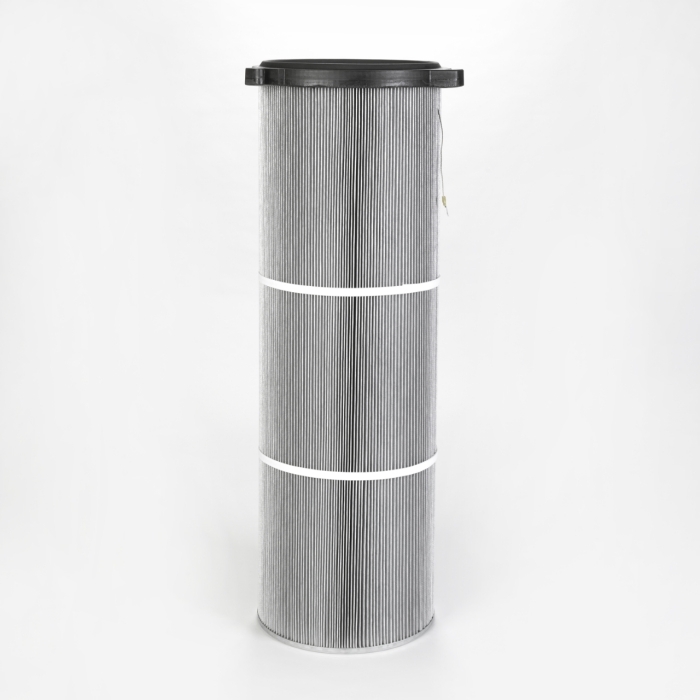

CARTRIDGE QUICK FIX 3 HOOK POLYESTER ANTI-STATIC OD 325 MM X L 1418 MM DAP

Your price: €322.73
List price:  €354.65

Files

Media Data Sheet Filter Data Sheet

Details

Cartridge Filter with open top end cap with 3 hooks, 397 mm pitch diameter and closed bottom end cap in Polyester Spunbond Anti-Static, 325 mm outer diameter x 1418 mm long including top gasket; Special features: Dirty Air Plenum installation, top end cap in Polyurethane and bottom end cap in Galvanized Steel, earthed for Series 325 and other brands of cartridge collectors

Attributes

Diameter (mm) 325
Inner Diameter (mm) 213
Length (mm) 1418
Media #REF!
Media Weight (g/m²) 270
Area (m²) 22.11
Unit Family Quick Fix 3
Pitch Diameter (mm) 397 (actual 393)
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above Top End Cap
End Cap/Liner Material Top End Cap Polyurethane and Bottom End Cap Zinc Plated Steel
Pleath Height (mm) 45
Number of Pleats 175
Max. Temp (°C) 60
Volume (m³) 0.2646
Weight (kg) 15
