2626524

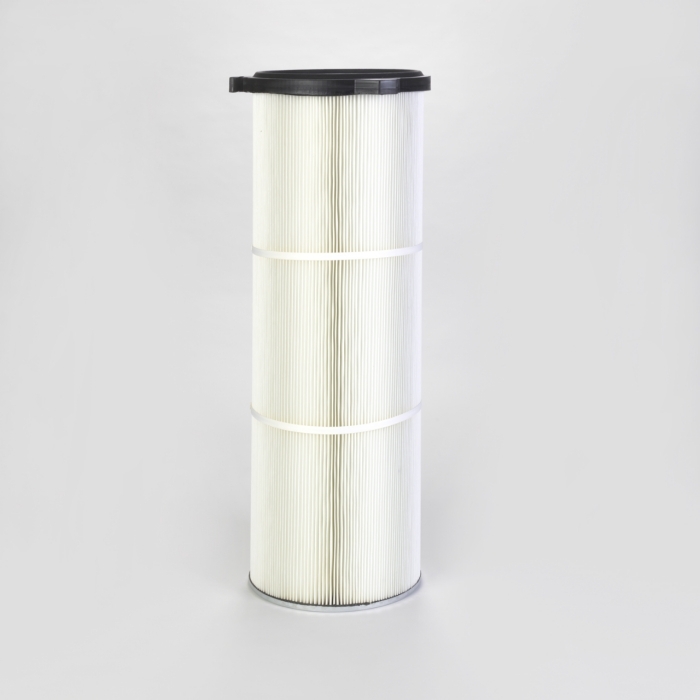

CARTRIDGE QUICK FIX 3 HOOK POLYESTER OD 125 MM X L 615 MM DAP

Your price: €100.36
List price:  €110.29

Files

Filter Data Sheet

Details

Cartridge Filter with open top end cap with 3 hooks, 160 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 125 mm outer diameter x 615 mm long including top gasket; Special feature: Dirty Air Plenum installation for Quick Fix and other brands of cartridge collectors

Attributes

Diameter (mm) 125
Inner Diameter (mm) 84
Length (mm) 615
Media #REF!
Media Weight (g/m²) 270
Area (m²) 1.11
Unit Family Quick Fix 3
Pitch Diameter (mm) 160
Bottom End Cap Design Closed
Earthed No
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above Top End Cap
End Cap/Liner Material Polyurethane
Pleath Height (mm) 18
Number of Pleats 50
Max. Temp (°C) 60
