2626532

CARTRIDGE QUICK FIX 3 HOOK POLYESTER OD 135 MM X L 1013 MM DAP

Your price: €97.99
List price:  €107.69

Files

Filter Data Sheet

Details

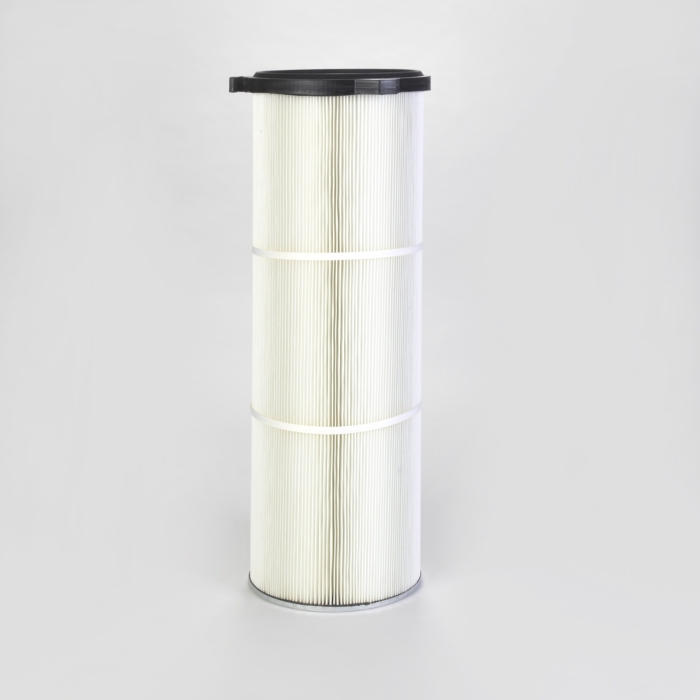

Cartridge Filter with open top end cap with 3 hooks, 170 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 135 mm outer diameter x 1013 mm long including top gasket; Special feature: Dirty Air Plenum installation for Quick Fix and other brands of cartridge collectors

Attributes

Diameter (mm) 135
Inner Diameter (mm) 95
Length (mm) 1013
Media #REF!
Media Weight (g/m²) 270
Area (m²) 3.1
Unit Family Quick Fix 3
Pitch Diameter (mm) 170
Bottom End Cap Design Closed
Earthed No
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above Top End Cap
End Cap/Liner Material Polyurethane
Pleath Height (mm) 20
Number of Pleats 75
Max. Temp (°C) 60
