2626535

CARTRIDGE QUICK FIX 3 HOOK POLYESTER OD 135 MM X L 1513 MM 3.31 M² DAP & CAP

Your price: €105.94
List price:  €116.42

Files

Filter Data Sheet

Details

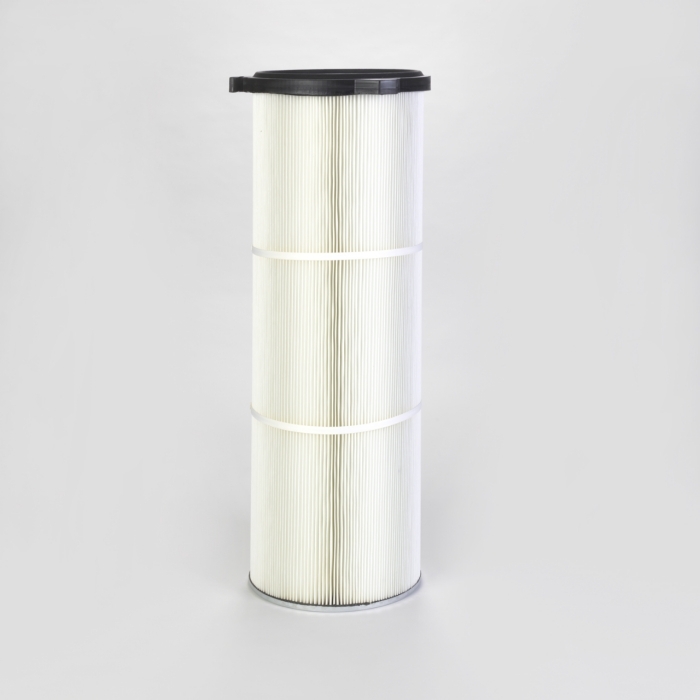

Cartridge Filter with open top end cap with 3 hooks, 170 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 135 mm outer diameter x 1513 mm long including top gasket; Special features: Filter area 3.31 m² and Dirty Air Plenum and Clean Air Plenum installation for Quick Fix and other brands of cartridge collectors

Attributes

Diameter (mm) 135
Inner Diameter (mm) 95
Length (mm) 1513
Media #REF!
Media Weight (g/m²) 270
Area (m²) 3.31
Unit Family Quick Fix 3
Pitch Diameter (mm) 170
Bottom End Cap Design Closed
Earthed No
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Polyurethane
Pleath Height (mm) 22
Number of Pleats 50
Max. Temp (°C) 60
