2626536

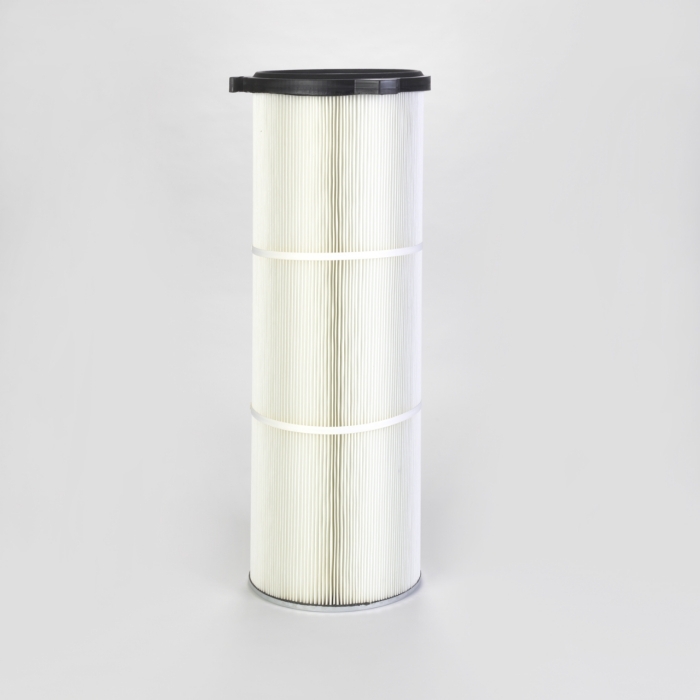

Cartridge Filter with open top end cap with 3 hooks, 170 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 135 mm outer diameter x 1513 mm long including top gasket; Special features: Filter area 4.28 m² and Dirty Air Plenum and Clean Air Plenum installation for Quick Fix and other brands of cartridge collectors

Diameter (mm)	135
Inner Diameter (mm)	95
Length (mm)	1513
Media	#REF!
Media Weight (g/m²)	270
Area (m²)	4.28
Unit Family	Quick Fix 3
Pitch Diameter (mm)	170
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Top End Cap Design	Open with 3 Hooks
Outer Liner	No
Gasket Position	Above and Below Top End Cap
End Cap/Liner Material	Polyurethane
Pleath Height (mm)	22
Number of Pleats	65
Max. Temp (°C)	60
