2626548

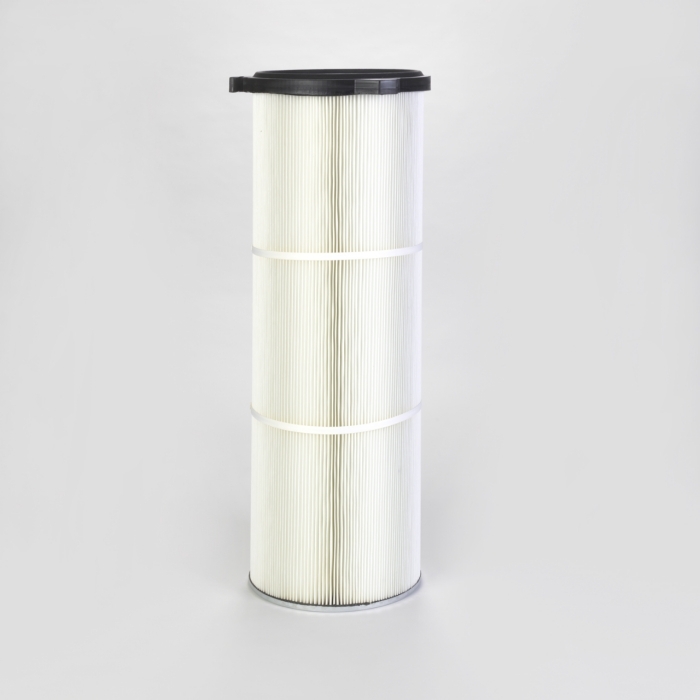

Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 145 mm outer diameter x 1515 mm long including top gasket; Special features: Filter area 5.61 m² and Dirty Air Plenum and Clean Air Plenum installation for Series 145 and other brands of cartridge collectors

Diameter (mm)	145
Inner Diameter (mm)	94
Length (mm)	1515
Media	Polyester Class L
Media Weight (g/m²)	108
Area (m²)	5.61
Unit Family	Farr-Tenkay
Pitch Diameter (mm)	180
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above and Below Top End Cap
Pleath Height (mm)	51
Number of Pleats	323
Max. Temp (°C)	60
