2626562

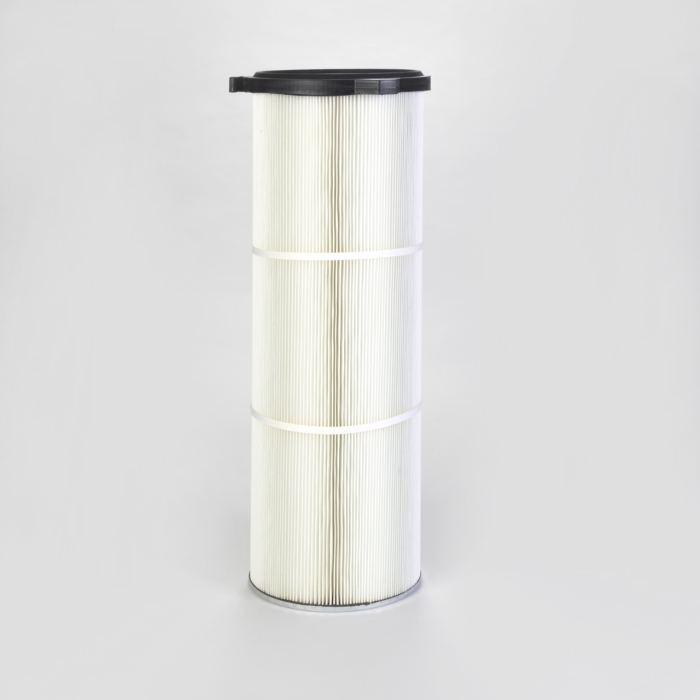

CARTRIDGE QUICK FIX 3 HOOK POLYESTER OD 218 MM X L 1515 MM DAP

Your price: €157.23
List price:  €172.79

Files

Filter Data Sheet

Details

Cartridge Filter with open top end cap with 3 hooks, 267 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 218 mm outer diameter x 1515 mm long including top gasket; Special feature: Dirty Air Plenum installation for Series 218 and other brands of cartridge collectors

Attributes

Diameter (mm) 218
Inner Diameter (mm) 143
Length (mm) 1515
Media #REF!
Media Weight (g/m²) 260
Area (m²) 9.6
Unit Family Quick Fix 3
Pitch Diameter (mm) 267 (actual 265)
Bottom End Cap Design Closed
Earthed No
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above Top End Cap
End Cap/Liner Material Polyurethane
Pleath Height (mm) 32
Number of Pleats 100
Max. Temp (°C) 60
Volume (m³) 0.11995
Weight (kg) 6.53
