2625592

CARTRIDGE QUICK FIX 3 HOOK POLYIMIDE (P84) D214MM L985MM TEMP < 200° DAP

Your price: €1,186.20
List price:  €1,303.52

Files

Filter Data Sheet

Details

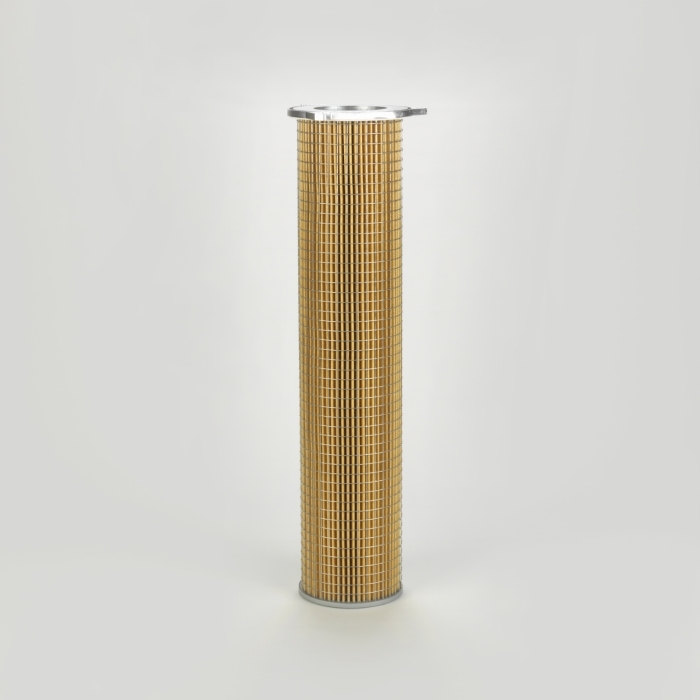

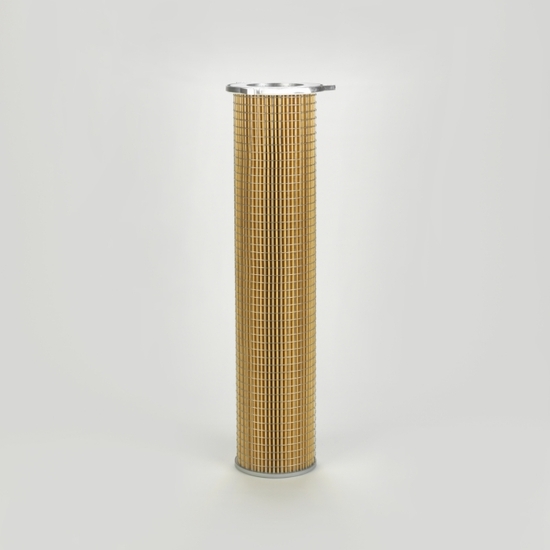

Cartridge Filter with open top end cap with 3 hooks, 267 mm pitch diameter and closed bottom end cap in Polyimide (P84), 214 mm outer diameter x 985 mm long; Special features: High temp up to 200 °C and Dirty Air Plenum installation for GEA Niro and other brands of cartridge collectors

Attributes

Diameter (mm) 214
Inner Diameter (mm) 146
Length (mm) 985
Media #REF!
Media Weight (g/m²) 520
Area (m²) 2.5
Unit Family Quick Fix 3
Pitch Diameter (mm) 267
Bottom End Cap Design Closed
Earthed No
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner Yes
Gasket Position Above Top End Cap
End Cap/Liner Material Aluminum
Pleath Height (mm) 28
Number of Pleats 45
Max. Temp (°C) 200
Volume (m³) 0.085782
Weight (kg) 6.39
