2626428

CARTRIDGE QUICK FIX 3 HOOK SMALL POLYESTER OD 325 MM X L 1518 MM NEUTRAL DAP & CAP

Your price: €285.73
List price:  €313.99

Details

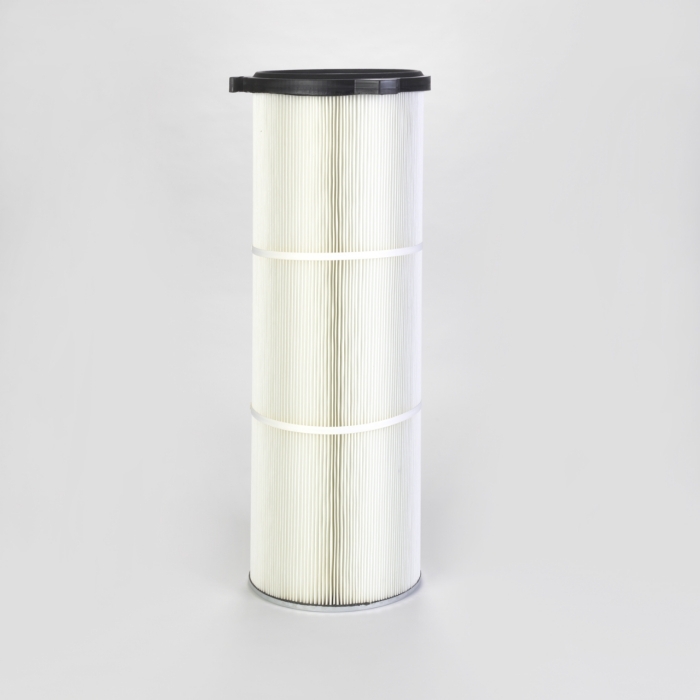

Cartridge Filter with open top end cap with 3 hooks, 366 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 325 mm outer diameter x 1518 mm long including top gasket; Special features: Neutral packaging and Dirty Air Plenum and Clean Air Plenum installation for Series 325 and other brands of cartridge collectors

Attributes

Diameter (mm) 325
Inner Diameter (mm) 213
Length (mm) 1518
Media #REF!
Media Weight (g/m²) 270
Area (m²) 25.2
Unit Family Quick Fix 3
Pitch Diameter (mm) 366
Bottom End Cap Design Closed
Earthed No
Flame Retardant No
Top End Cap Design Open with 3 Hooks Small
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Polyurethane
Pleath Height (mm) 48
Number of Pleats 175
Max. Temp (°C) 60
Volume (m³) 0.271656
Weight (kg) 12.5
