2625816

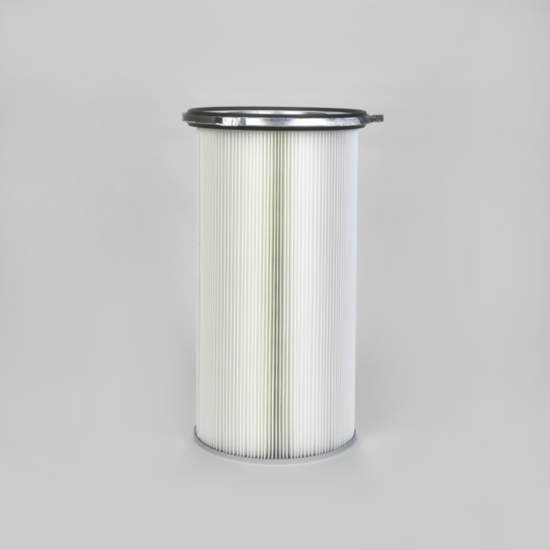

Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Standard Polyester Spunbond, 145 mm outer diameter x 1200 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Series 145 / JETPACK C and other brands of cartridge collectors

Diameter (mm)	145
Inner Diameter (mm)	80
Length (mm)	1200
Media	#REF!
Media Weight (g/m²)	250
Area (m²)	3.9
Unit Family	JETPACK B & C (Delta Neu), Airalt (Coral)
Pitch Diameter (mm)	180
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Top End Cap Design	Open with 3 Hooks
Outer Liner	No
Gasket Position	Above and Below Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	25
Number of Pleats	65
Max. Temp (°C)	93
Volume (m³)	0.056448
Weight (kg)	3.05
