2625794

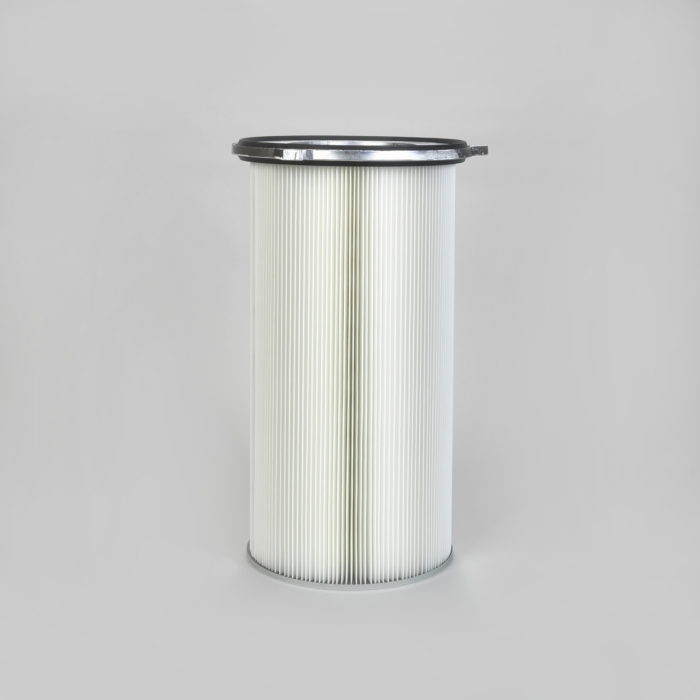

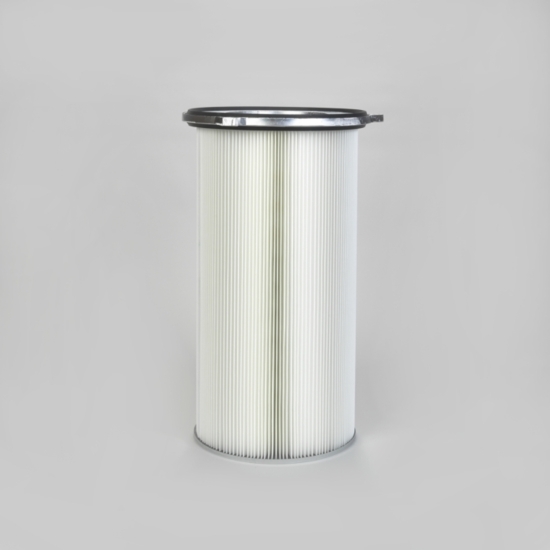

CARTRIDGE QUICK FIX 3 HOOK STANDARD POLYESTER OD 218 MM X L 600 MM EARTHED DAP & CAP

Your price: €127.41
List price:  €140.02

Files

Filter Data Sheet

Details

Cartridge Filter with open top end cap with 3 hooks, 267 mm pitch diameter and closed bottom end cap in Standard Polyester Spunbond, 218 mm outer diameter x 600 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Series 218 and other brands of cartridge collectors

Attributes

Diameter (mm) 218
Inner Diameter (mm) 143
Length (mm) 600
Media #REF!
Media Weight (g/m²) 250
Area (m²) 2.7
Unit Family Quick Fix 3
Pitch Diameter (mm) 267
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 30
Number of Pleats 75
Max. Temp (°C) 93
Volume (m³) 0.0603
Weight (kg) 3.17
