2625770

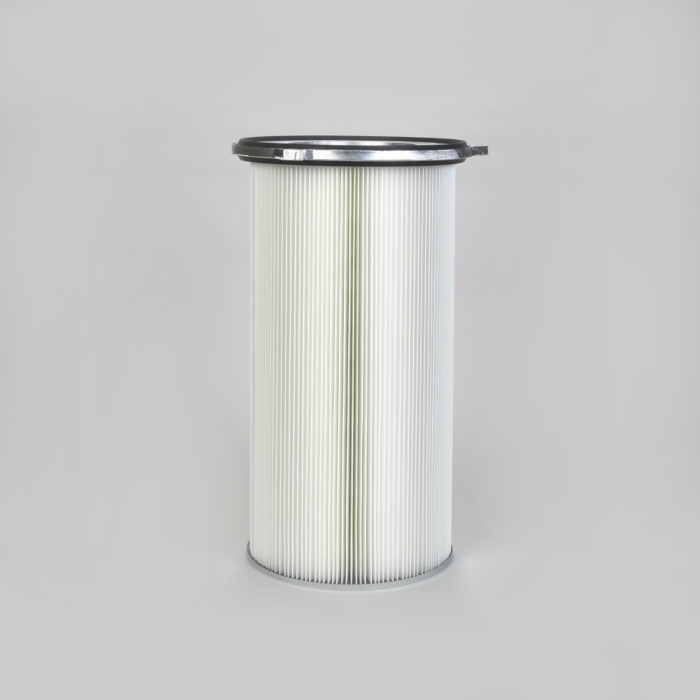

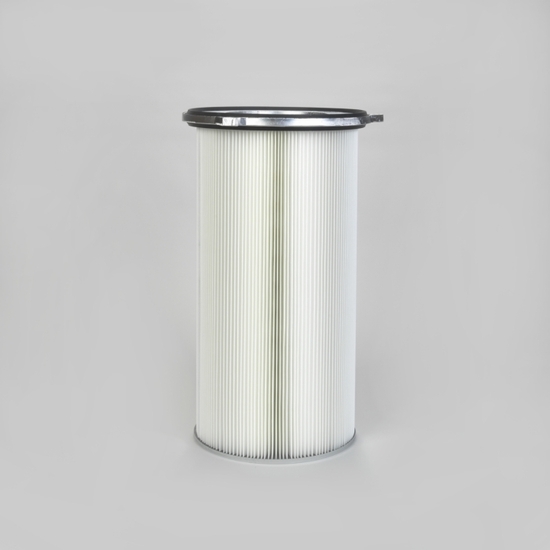

CARTRIDGE QUICK FIX 3 HOOK STANDARD POLYESTER OD 325 MM X L 660 MM EARTHED DAP & CAP

Your price: €131.46
List price:  €144.47

Files

Filter Data Sheet

Details

Cartridge Filter with open top end cap with 3 hooks, 397 mm pitch diameter and closed bottom end cap in Standard Polyester Spunbond, 325 mm outer diameter x 660 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installationfor Series 325 and other brands of cartridge collectors

Attributes

Diameter (mm) 325
Inner Diameter (mm) 213
Length (mm) 660
Media #REF!
Media Weight (g/m²) 250
Area (m²) 11.55
Unit Family Quick Fix 3
Pitch Diameter (mm) 397
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 49
Number of Pleats 179
Max. Temp (°C) 93
Volume (m³) 0.127581
Weight (kg) 7.62
