2625789

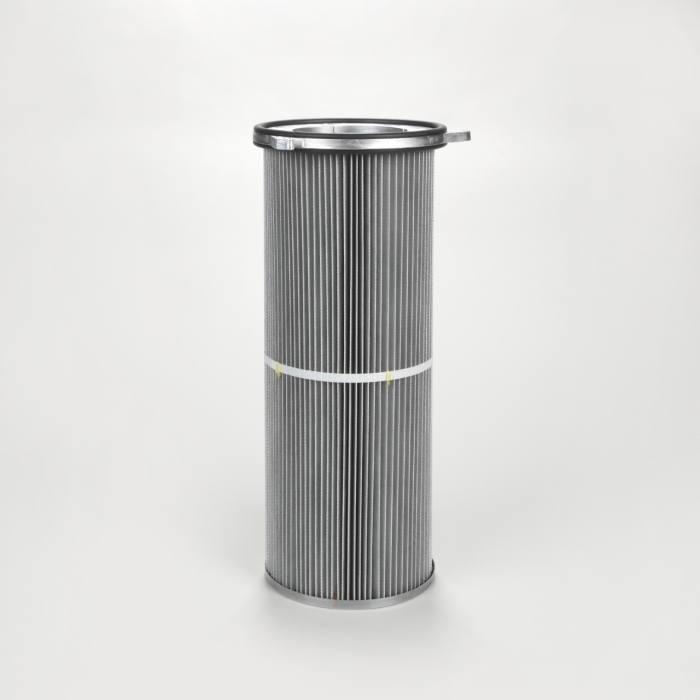

Cartridge Filter with open top end cap with 3 hooks, 397 mm pitch diameter and closed bottom end cap in Torit-Tex Anti-Static (Polyester Spunbond) TT9040, 325 mm outer diameter x 600 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installationfor Series 325 and other brands of cartridge collectors

Diameter (mm)	325
Inner Diameter (mm)	213
Length (mm)	600
Media	#REF!
Media Weight (g/m²)	260
Area (m²)	10.5
Unit Family	Quick Fix 3
Pitch Diameter (mm)	397
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Top End Cap Design	Open with 3 Hooks
Outer Liner	No
Gasket Position	Above and Below Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	49
Number of Pleats	179
Max. Temp (°C)	93
