2626480

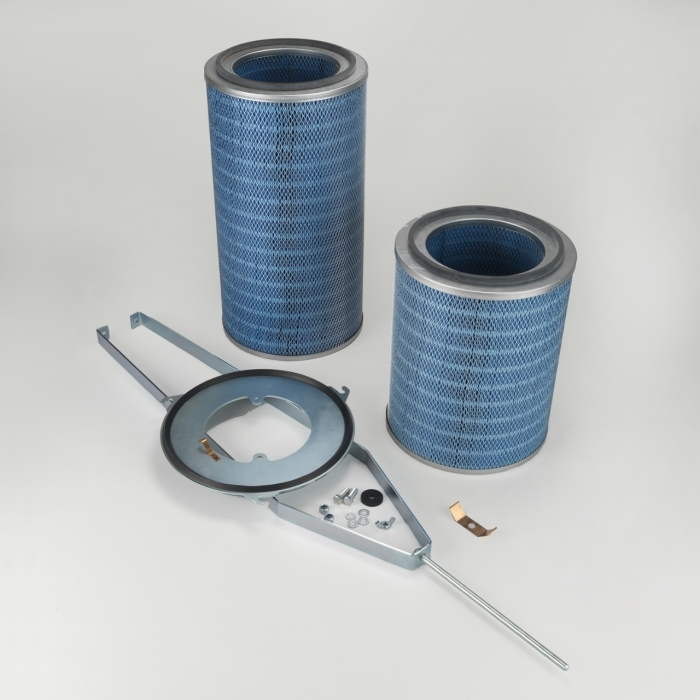

Cartridge Filter with open top end cap with 3 hooks, 397 mm pitch diameter and closed bottom end cap in Ultra-Web Flame Retardant 324 mm outer diameter x 1000 mm long; Special features: Earthed, kit with yoke and Dirty Air Plenum and Clean Air Plenum installation for Series 324 and other brands of cartridge collectors

Diameter (mm)	324
Inner Diameter (mm)	213
Length (mm)	1000
Media	#REF!
Media Weight (g/m²)	115
Area (m²)	23.4
Unit Family	Quick Fix 3
Pitch Diameter (mm)	397
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	Yes
Top End Cap Design	Open with 3 Hooks
Outer Liner	Yes
Gasket Position	Above and Below Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	50
Number of Pleats	242
Max. Temp (°C)	65
