2627134-000-440

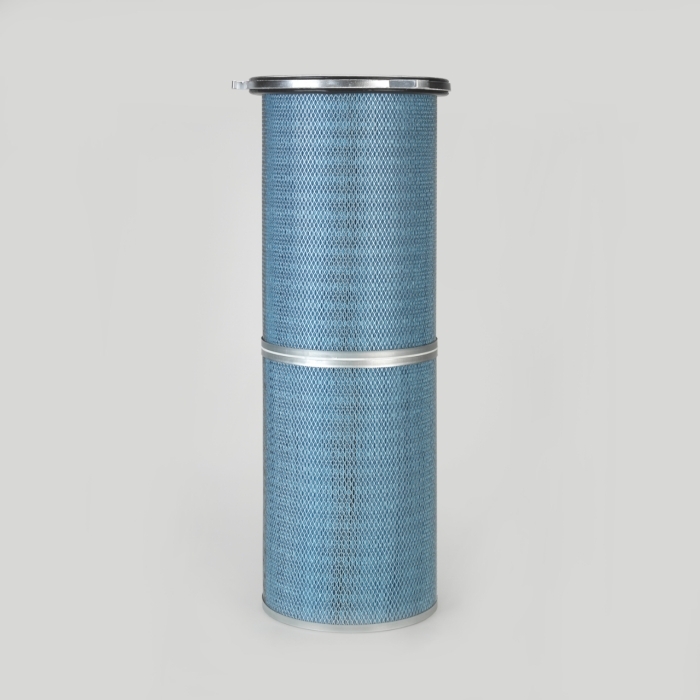

Cartridge Filter with open top end cap with 3 hooks, 397 mm pitch diameter and closed bottom end cap  in Ultra-Web, 325 mm outer diameter x 1000 mm long; Special feature: Glued with Dirty Air Plenum and Clean Air Plenum installation for Clemco and other brands of cartridge collectors

Diameter (mm)	325
Inner Diameter (mm)	209
Length (mm)	1000
Media	#REF!
Media Weight (g/m²)	114
Area (m²)	32
Unit Family	Quick Fix 3
Pitch Diameter (mm)	397 (actual 393)
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Top End Cap Design	Open with 3 Hooks
Outer Liner	Yes
Gasket Position	Above and Below Top End Cap
End Cap/Liner Material	Top End Cap Aluminum and Bottom End Cap Galvanized Steel
Pleath Height (mm)	48
Number of Pleats	338
Max. Temp (°C)	60
Volume (m³)	0.1696
Weight (kg)	11.8
