2626746-000-440

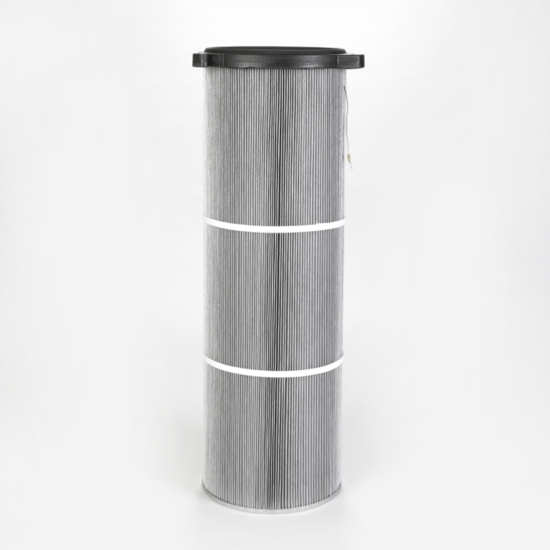

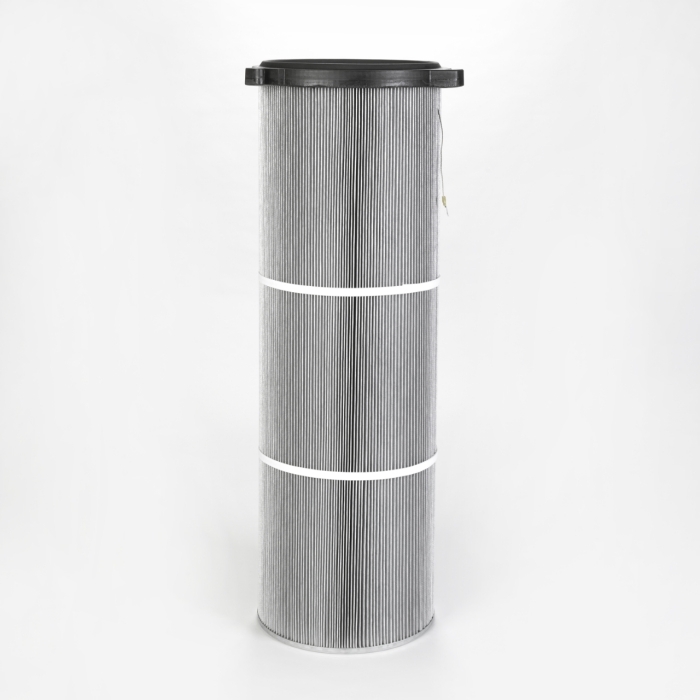

Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Ultra-Web Spunbond Anti-Static, 145 mm outer diameter x 300 mm long including top gasket; Special features: Dirty Air Plenum and Clean Air Plenum installation, earthed for Quick Fix and other brands of cartridge collectors

Diameter (mm)	145
Inner Diameter (mm)	94
Length (mm)	300
Media	#REF!
Media Weight (g/m²)	260
Area (m²)	0.7
Unit Family	Quick Fix 3
Pitch Diameter (mm)	180
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Top End Cap Design	Open with 3 Hooks
Outer Liner	No
Gasket Position	Above and Below Top End Cap
End Cap/Liner Material	Polyurethane
Pleath Height (mm)	18
Number of Pleats	65
Max. Temp (°C)	60
Volume (m³)	0.019375
Weight (kg)	1.1
