2625751

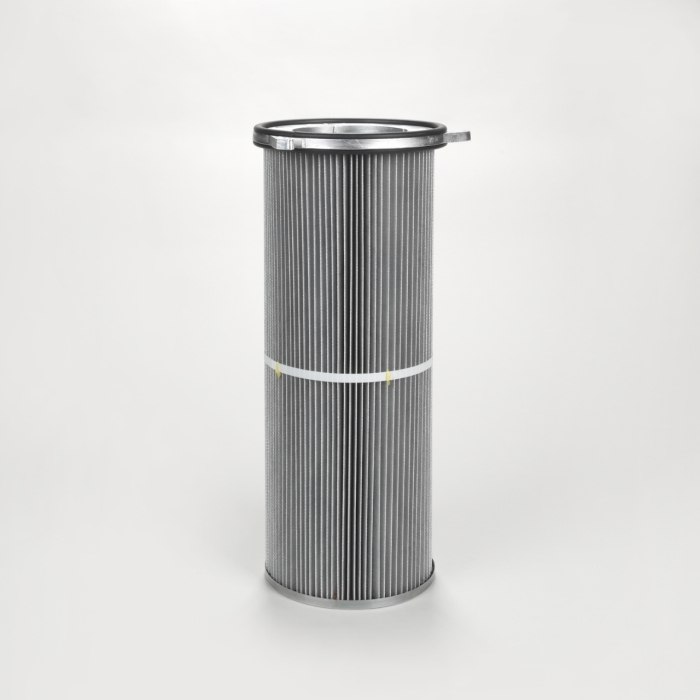

CARTRIDGE QUICK FIX 3 HOOK ULTRA-WEB SB ANTI-STATIC OD 145 MM X L 600 MM DAP & CAP

Your price: €141.83
List price:  €155.86

Files

Filter Data Sheet Media Data Sheet

Details

Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Ultra-Web Spunbond Anti-Static, 145 mm outer diameter x 600 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Series 145 / JETPACK C and other brands of cartridge collectors

Attributes

Diameter (mm) 145
Inner Diameter (mm) 80
Length (mm) 600
Media #REF!
Media Weight (g/m²) 260
Area (m²) 1.95
Unit Family JETPACK C
Pitch Diameter (mm) 180
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 25
Number of Pleats 65
Max. Temp (°C) 93
Volume (m³) 0.029547
Weight (kg) 1.83
