2625745

CARTRIDGE QUICK FIX 3 HOOK ULTRA-WEB SB ANTI-STATIC OD 156 MM X L 600 MM DAP & CAP

Your price: €156.01
List price:  €171.44

Files

Media Data Sheet Filter Data Sheet

Details

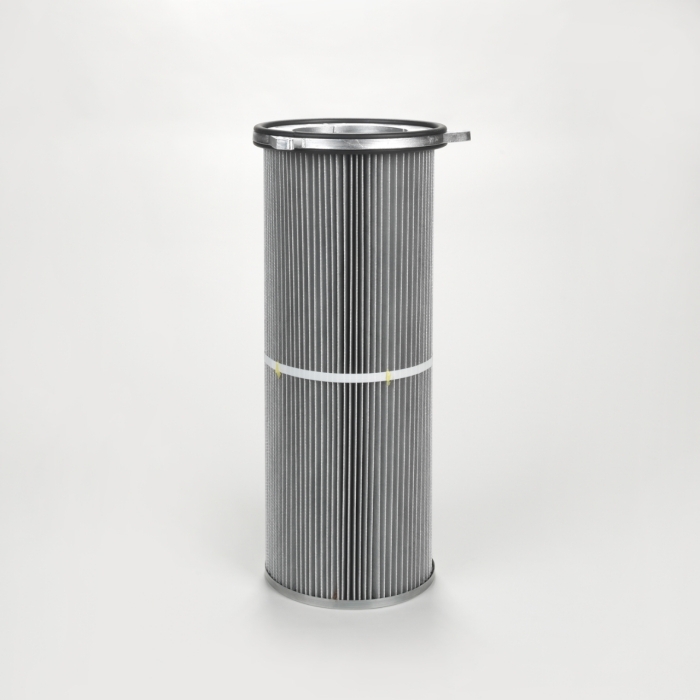

Cartridge Filter with open top end cap with 3 hooks, 207 mm pitch diameter and closed bottom end cap in Ultra-Web Spunbond Anti-Static, 156 mm outer diameter x 600 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Series 156 and other brands of cartridge collectors

Attributes

Diameter (mm) 156
Inner Diameter (mm) 84-85
Length (mm) 600
Media #REF!
Media Weight (g/m²) 260
Area (m²) 1.95
Unit Family Quick Fix 3
Pitch Diameter (mm) 207
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 30
Number of Pleats 65
Max. Temp (°C) 93
Volume (m³) 0.040625
Weight (kg) 2.21
