2627202-000-440

CARTRIDGE QUICK FIX 3 HOOK ULTRA-WEB SB ANTI-STATIC OD 218 MM X L 710 MM DAP & CAP

Your price: €99.79
List price:  €109.67

Files

Filter Data Sheet Media Data Sheet

Details

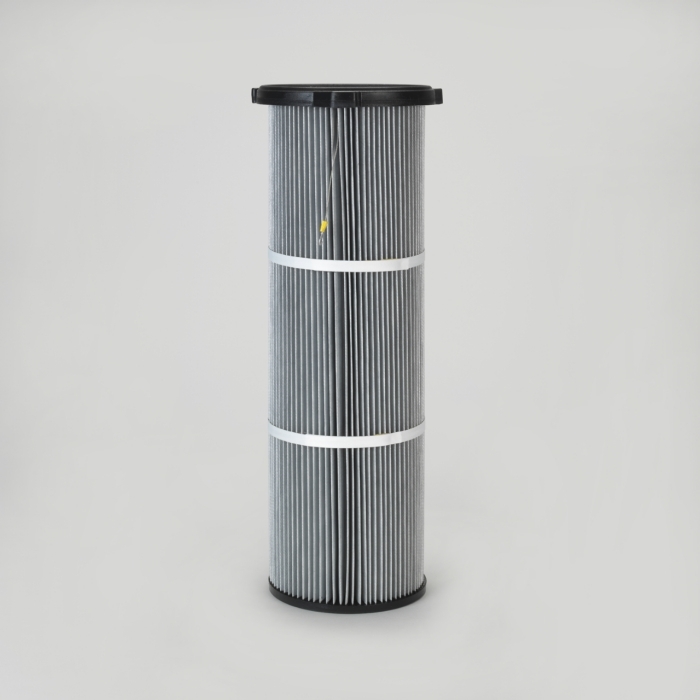

Cartridge Filter with open end cap with 3 hooks and pitch diameter 267 mm in Ultra-Web Spunbond Anti-Static , 218 mm outer diameter x 710 mm long including top gasket; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Tema Process and other brands of cartridge collectors

Attributes

Diameter (mm) 218
Inner Diameter (mm) 143
Length (mm) 710
Media #REF!
Media Weight (g/m²) 260
Area (m²) 3.4
Unit Family Quick Fix 3
Pitch Diameter (mm) 267 (actual 265)
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Polyurethane
Pleath Height (mm) 32
Number of Pleats 75
Max. Temp (°C) 60
Volume (m³) 0.06977
Weight (kg) 3.01
