2626929-000-440

CARTRIDGE QUICK FIX 3 HOOK ULTRA-WEB SB OD 218 MM X L 515 MM DAP & CAP

Your price: €77.59
List price:  €85.27

Files

Filter Data Sheet Media Data Sheet

Details

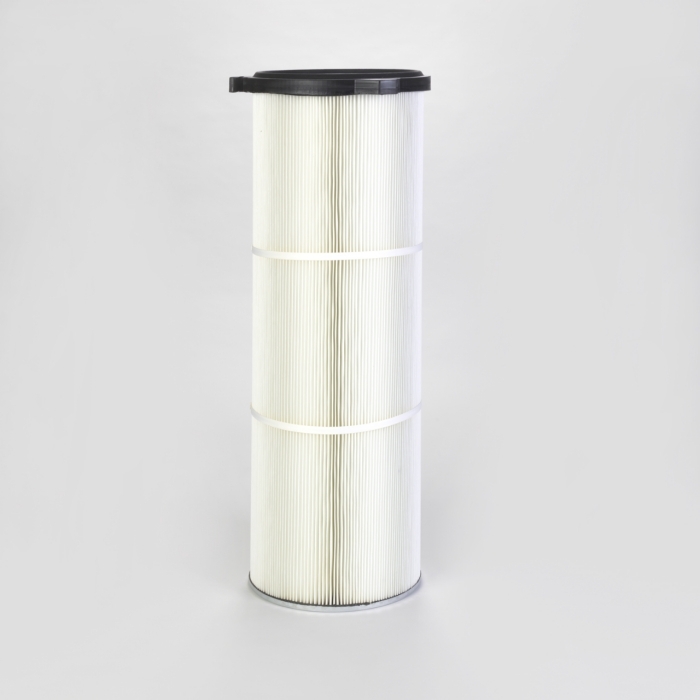

Cartridge Filter with open top end cap with 3 hooks, 267 mm pitch diameter and closed bottom end cap in Ultra-Web Spunbond, 218 mm outer diameter x 515 mm long including top gasket; Special features: Dirty Air Plenum and Clean Air Plenum installation for Quick Fix and other brands of cartridge collectors

Attributes

Diameter (mm) 218
Inner Diameter (mm) 143
Length (mm) 515
Media #REF!
Media Weight (g/m²) 260
Area (m²) 2.7
Unit Family Quick Fix 3
Pitch Diameter (mm) 267 (actual 265)
Bottom End Cap Design Closed
Earthed No
Flame Retardant No
Top End Cap Design Open with 3 Hooks
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Polyurethane
Pleath Height (mm) 33
Number of Pleats 80
Max. Temp (°C) 60
Volume (m³) 0.07056
Weight (kg) 3.83
