2627162-000-440

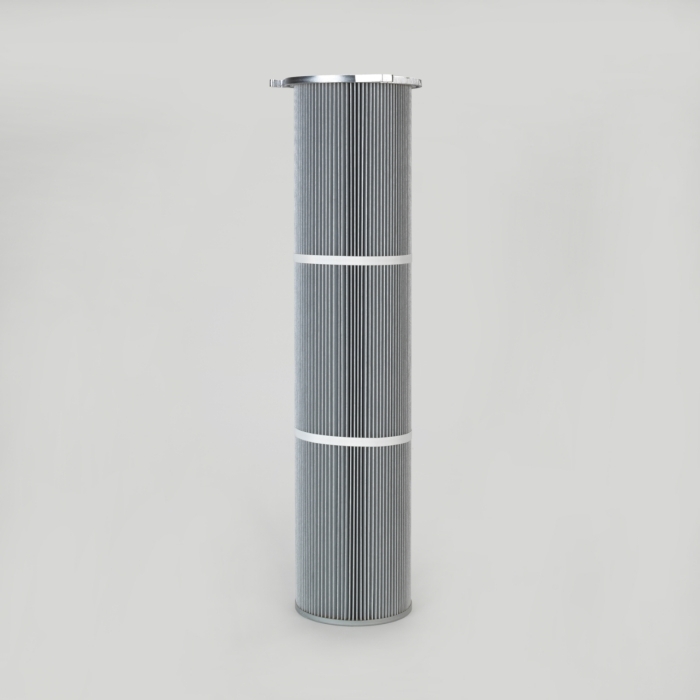

Cartridge Filter with open end cap with 3 hooks and pitch diameter 267 mm in Polyester Spunbond Anti-Static, 214 mm outer diameter x 985 mm long; Special features: Dirty Air Plenum installation for GEA Niro and other brands of cartridge collectors

Diameter (mm)	214
Inner Diameter (mm)	146
Length (mm)	985
Media	Polyester Anti-Static
Area (m²)	5
Unit Family	Quick Fix 3
Pitch Diameter (mm)	267
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Top End Cap Design	Open with 3 Hooks
Outer Liner	No
Gasket Position	Above Top End Cap
End Cap/Liner Material	Top End Cap Aluminum and Bottom End Cap Galvanized Steel
Pleath Height (mm)	28
Number of Pleats	90
Max. Temp (°C)	60
Volume (m³)	0.08662
Weight (kg)	4.78
