R080043-000-440

CARTRIDGE QUICK FIX 4 HOOK POLYESTER ANTI-STATIC OD 325 MM X L 758 MM CAP

Your price: €270.45
List price:  €297.20

Files

Media Data Sheet

Details

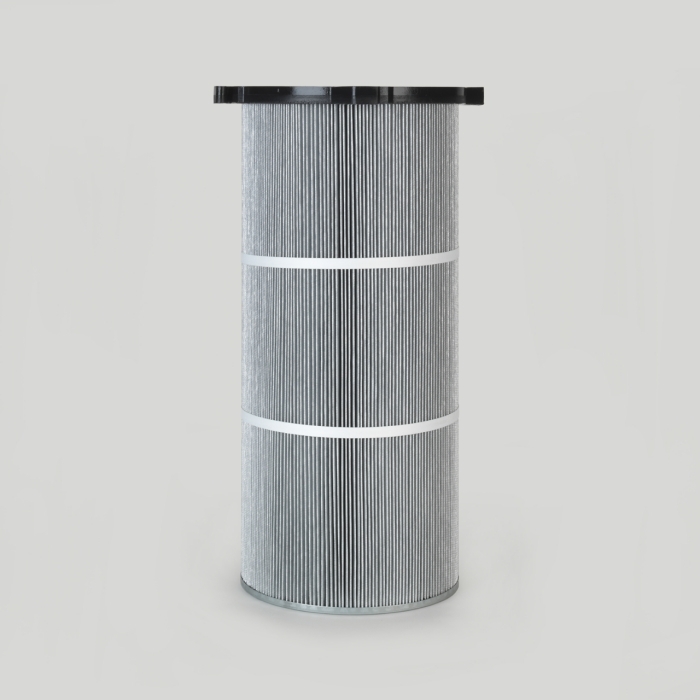

Cartridge Filter with open top end cap with 4 hooks, 366 mm pitch diameter and closed bottom end cap in Polyester Spunbond Anti-Static, 325 mm outer diameter x 758 mm long; Special features: Clean Air Plenum installation for different brands of cartridge collectors

Attributes

Diameter (mm) 325
Inner Diameter (mm) 214
Length (mm) 758
Media #REF!
Media Weight (g/m²) 270
Area (m²) 12.6
Unit Family Quick Fix 4
Pitch Diameter (mm) 366
Bottom End Cap Design Closed
Earthed Yes
Flame Retardant No
Top End Cap Design Open with 4 Hooks
Outer Liner No
Gasket Position Below Top End Cap
End Cap/Liner Material Top end Polyurethane and Bottom End Cap Galvanized Steel
Pleath Height (mm) 48
Number of Pleats 175
Max. Temp (°C) 60
Volume (m³) 0.14641
Weight (kg) 8.608
