2625802

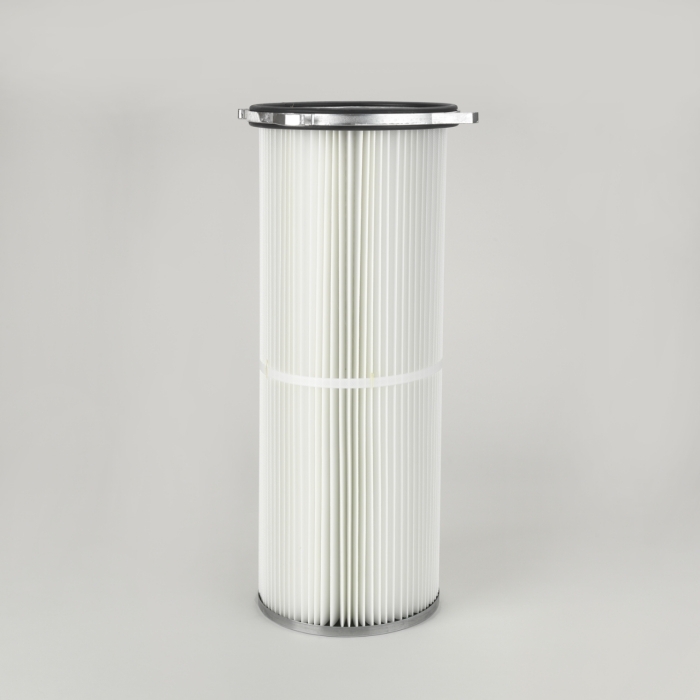

Cartridge Filter with open top end cap with 4 hooks, 267 mm pitch diameter and closed bottom end cap in Standard Polyester Spunbond, 218 mm outer diameter x 1000 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Series 218 and other brands of cartridge collectors

Diameter (mm)	218
Inner Diameter (mm)	144
Length (mm)	1000
Media	#REF!
Media Weight (g/m²)	250
Area (m²)	4.5
Unit Family	Quick Fix 4
Pitch Diameter (mm)	267
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Top End Cap Design	Open with 4 Hooks
Outer Liner	No
Gasket Position	Above and Below Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	30
Number of Pleats	75
Max. Temp (°C)	93
