2627420-000-440

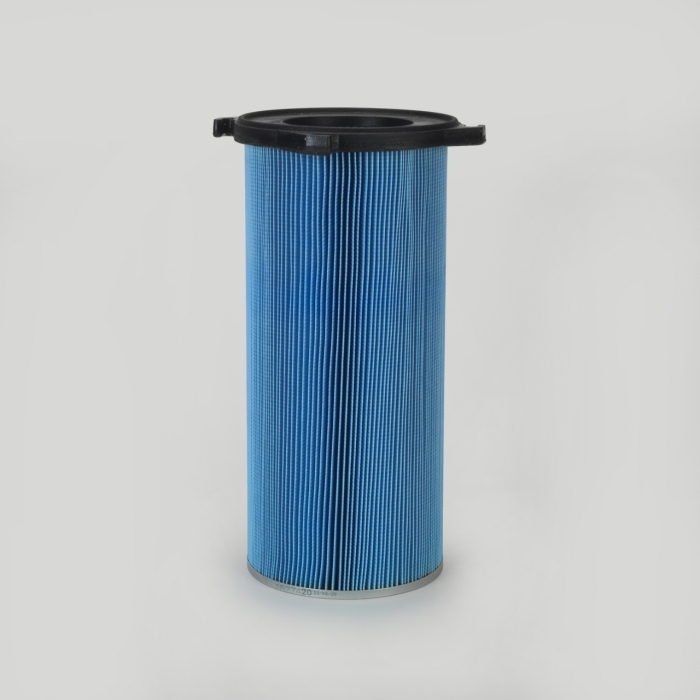

Cartridge Filter with open top end cap with 4 hooks, 265 mm pitch diameter and closed bottom end cap in Ultra-Web Flame Retardant, 218 mm outer diameter x 505 mm long including top gasket; Special features: Without outer liner, Dirty Air Plenum and Clean Air Plenum installation for Series 218 and other brands of cartridge collectors

Diameter (mm)	218
Inner Diameter (mm)	140
Length (mm)	505
Media	#REF!
Media Weight (g/m²)	115
Area (m²)	5
Unit Family	Quick Fix 4
Pitch Diameter (mm)	267 (actual 265)
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	Yes
Top End Cap Design	Open with 4 Hooks
Outer Liner	No
Gasket Position	Above and Below Top End Cap
End Cap/Liner Material	Polyurethane
Pleath Height (mm)	34
Number of Pleats	150
Max. Temp (°C)	70
Volume (m³)	0.06977
Weight (kg)	3.1
