2627149-000-440

CARTRIDGE QUICK FIX 4 POLYESTER PTFE COATED OD 216 MM X L 2000 MM DAP & CAP

Your price: €220.41
List price:  €242.21

Files

Media Data Sheet

Details

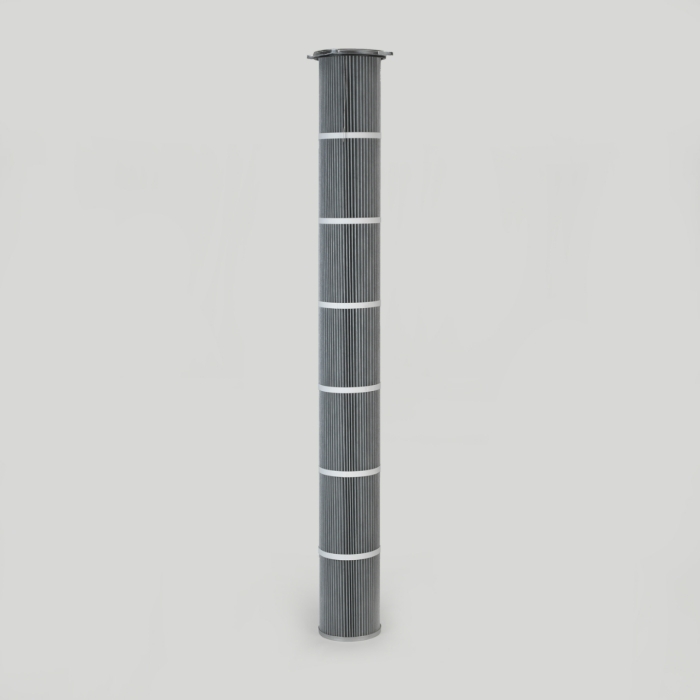

Cartridge Filter with open top end cap with 4 hooks, 300 mm pitch diameter and closed bottom end cap in Polyester Spunbond with PTFE Coating, 216 mm outer diameter x 2000 mm long, Special features: Glued and Dirty and Clean Air Plenum Installation for different brands of cartridge collectors

Attributes

Diameter (mm) 216
Inner Diameter (mm) 144
Length (mm) 2000
Media #REF!
Media Weight (g/m²) 245
Area (m²) 7.5
Unit Family Quick Fix 4
Pitch Diameter (mm) 300
Bottom End Cap Design Closed
Earthed No
Flame Retardant No
Top End Cap Design Open with 4 Hooks
Outer Liner No
Gasket Position Above and Below Top End Cap
End Cap/Liner Material Top End Cap in Aluminum and Bottom End Cap in Galvanized Steel
Pleath Height (mm) 28
Number of Pleats 67
Max. Temp (°C) 60
Volume (m³) 0.202797
Weight (kg) 7
