2627369-000-440

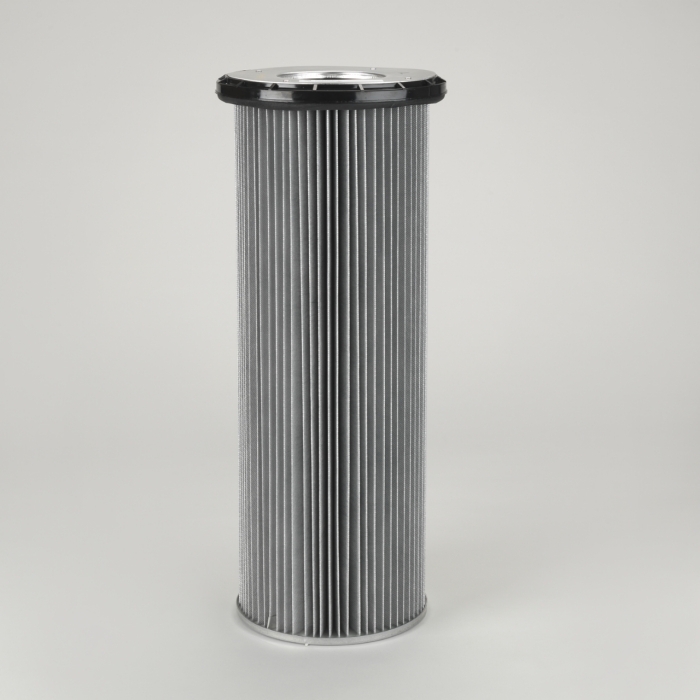

Siloair Cartridge Filter in Polyester Spunbond Anti-Static with PTFE EU Food Certified, 201 mm outer diameter x 568 mm long; Special feature: Earthed with open top end cap with internal venturi and closed bottom end cap for Siloair and other brands of cartridge collectors

Diameter (mm)	201
Inner Diameter (mm)	72
Length (mm)	568
Media	#REF!
Media Weight (g/m²)	260
Area (m²)	2.5
Unit Family	DCE100 Series / Siloair
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Top End Cap Design	Open
Outer Liner	No
Gasket Position	Below Top End Cap
End Cap/Liner Material	Top end cap Polyurethane and Bottom end cap Galvanized Steel
Pleath Height (mm)	30
Number of Pleats	74
Max. Temp (°C)	80
Volume (m³)	0.06896
Weight (kg)	4.33
