2625085E-000-440

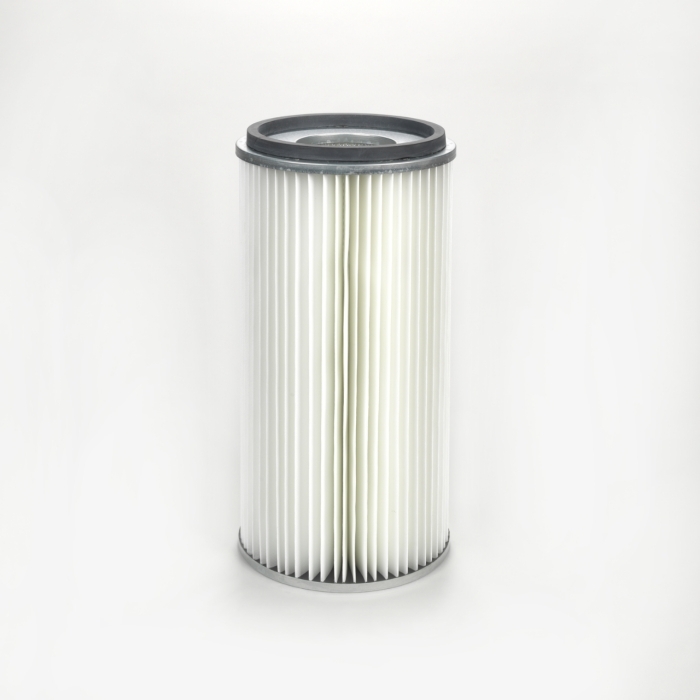

TDsmall-style Cartridge Filter in Torit-Tex (Polyester Spunbound) TT9032, 202 mm outer diameter x 406 mm long; Special feature: Earthed with open/closed (13.5mm bolt hole) end caps for Small TD and other brands of cartridge collectors

Diameter (mm)	202
Inner Diameter (mm)	91
Length (mm)	406
Media	#REF!
Media Weight (g/m²)	260
Area (m²)	2.4
Unit Family	TD small
Bottom End Cap Design	Closed with hole 13.5 mm
Earthed	Yes
Flame Retardant	No
Top End Cap Design	Open
Outer Liner	No
Gasket Position	Above Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	49
Number of Pleats	61
Max. Temp (°C)	93
Volume (m³)	0.02217
Weight (kg)	1.838
