2625007-000-440

CARTRIDGE TD SMALL ULTRA-WEB OD 202 MM X L 406 MM

Your price: €79.61
List price:  €87.49

Files

Media Data Sheet

Details

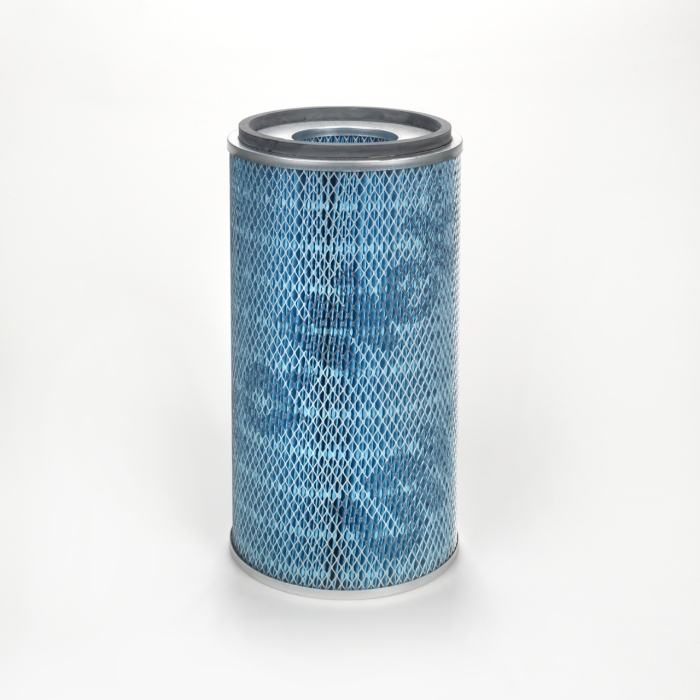

TDsmall-style Cartridge Filter in Ultra-Web, 202 mm outer diameter x 406 mm long with open/closed (13.5mm bolt hole) end caps for Small TD and other brands of cartridge collectors

Attributes

Diameter (mm) 202
Inner Diameter (mm) 91
Length (mm) 406
Media #REF!
Media Weight (g/m²) 114
Area (m²) 5.5
Unit Family TD small
Bottom End Cap Design Closed with hole 13.5 mm
Earthed No
Flame Retardant No
Top End Cap Design Open
Outer Liner Yes
Gasket Position Above Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 51
Number of Pleats 141
Max. Temp (°C) 65
Volume (m³) 0.01896
Weight (kg) 1.71
