2625143-000-440

CARTRIDGE TD SMALL ULTRA-WEB OD 202 MM X L 406 MM NO OUTER LINER

Your price: €79.61
List price:  €87.49

Files

Media Data Sheet Filter Data Sheet

Details

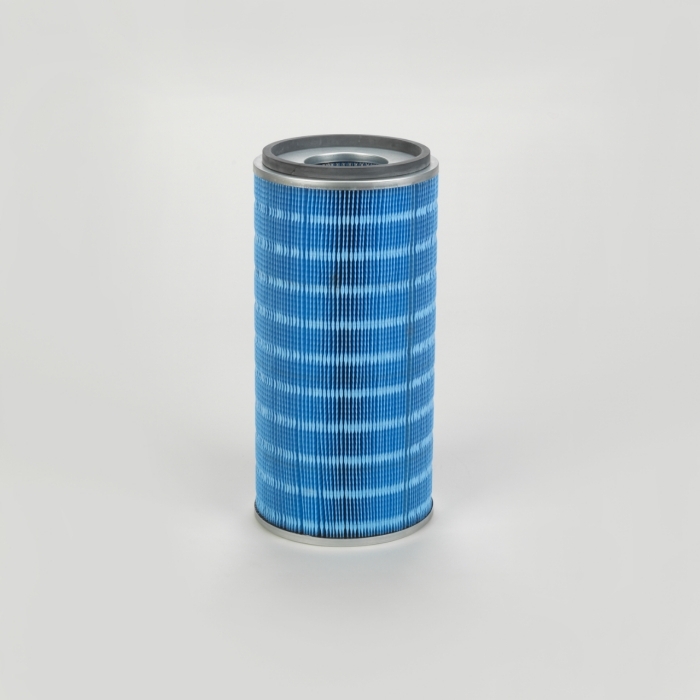

TDsmall-style Cartridge Filter in Ultra-Web, 202 mm outer diameter x 406 mm long; Special feature: No outer liner with open/closed (13.5mm bolt hole) end caps for Small TD and other brands of cartridge collectors

Attributes

Diameter (mm) 202
Inner Diameter (mm) 91
Length (mm) 406
Media #REF!
Media Weight (g/m²) 114
Area (m²) 5.5
Unit Family TD small
Bottom End Cap Design Closed with hole 13.5 mm
Earthed No
Flame Retardant No
Top End Cap Design Open
Outer Liner No
Gasket Position Above Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 51
Number of Pleats 141
Max. Temp (°C) 65
Volume (m³) 0.02032
Weight (kg) 1.71
