2625077E

CARTRIDGE TD TORIT-TEX OD 324 MM X L 660 MM SS EARTHED

Your price: €363.55
List price:  €399.51

Files

Filter Data Sheet Media Data Sheet

Details

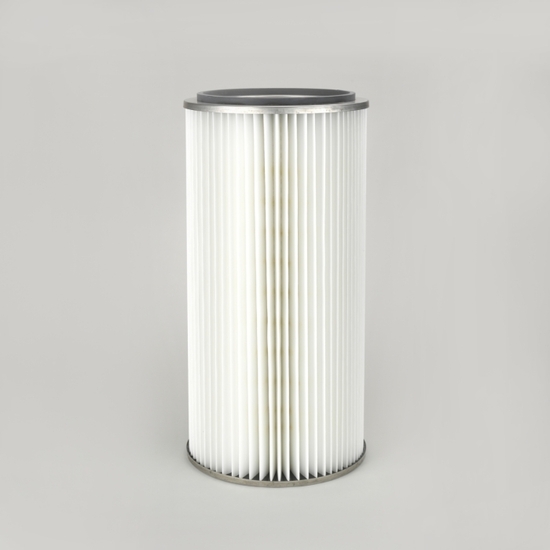

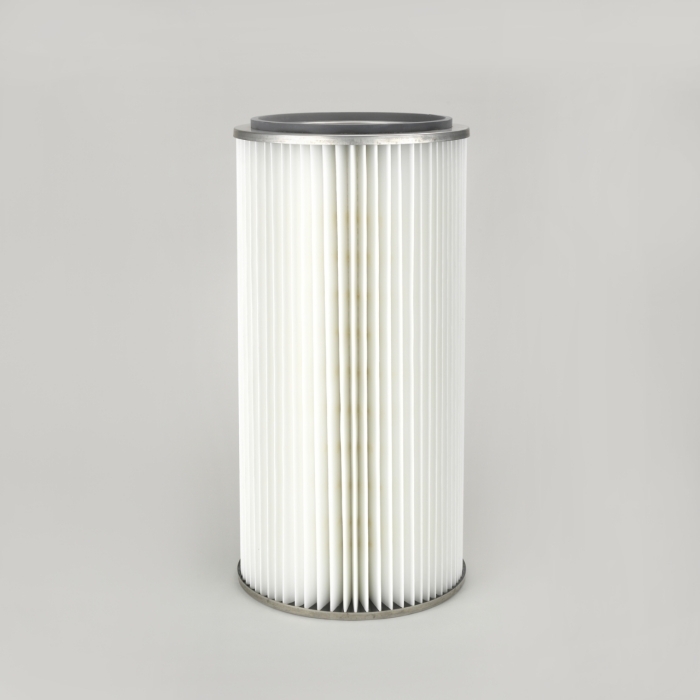

TD-style Cartridge Filter in Torit-Tex (Polyester Spunbound) TT9032, 324 mm outer diameter x 660 mm long; Special features: Stainless steel and earthed with open/closed (13.5mm bolt hole) end caps for ECB, TD and other brands of cartridge collectors

Attributes

Diameter (mm) 324
Inner Diameter (mm) 213
Length (mm) 660
Media #REF!
Media Weight (g/m²) 260
Area (m²) 4.6
Unit Family TD / ECB / DFP / PT1001
Bottom End Cap Design Closed with hole 13.5 mm
Earthed Yes
Flame Retardant No
Top End Cap Design Open
Outer Liner No
Gasket Position Above Top End Cap
End Cap/Liner Material Stainless Steel
Pleath Height (mm) 49
Number of Pleats 73
Max. Temp (°C) 93
Volume (m³) 0.098568
Weight (kg) 5.88
