2626639-000-440

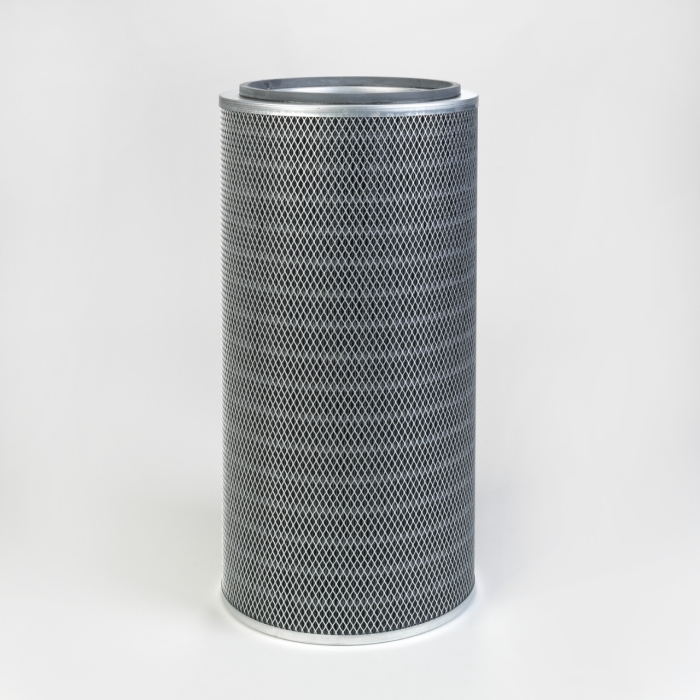

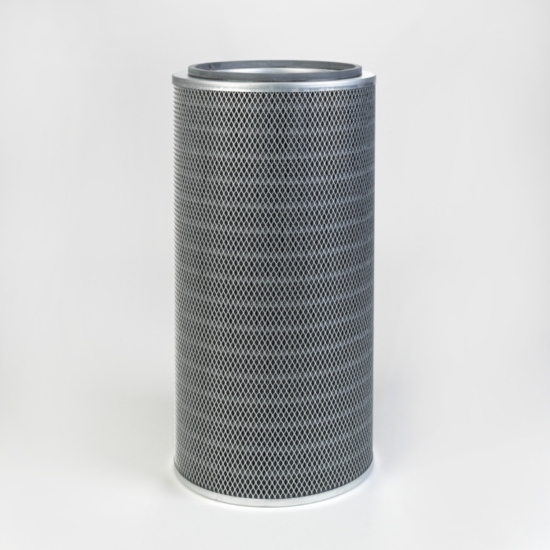

TD-style Cartridge Filter in Ultra-Web Anti-Static Flame Retardant, 324 mm outer diameter x 660 mm long; Special feature: Earthed with open top end cap and closed bottom end cap with 13.5 mm bolt hole for ECB, TD and other brands of cartridge collectors

Diameter (mm)	324
Inner Diameter (mm)	213
Length (mm)	660
Media	#REF!
Media Weight (g/m²)	104
Area (m²)	21.6
Unit Family	TD / ECB / DFP / PT1001
Bottom End Cap Design	Closed with hole 13.5 mm
Earthed	Yes
Flame Retardant	Yes
Top End Cap Design	Open
Outer Liner	Yes
Gasket Position	Above Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	50
Number of Pleats	323
Max. Temp (°C)	65
Volume (m³)	0.095904
Weight (kg)	5.95
