2625521-000-440

CARTRIDGE TD ULTRA-WEB FR OD 324 MM X L 660 MM NO OUTER LINER

Your price: €188.86
List price:  €207.54

Files

Media Data Sheet Filter Data Sheet

Details

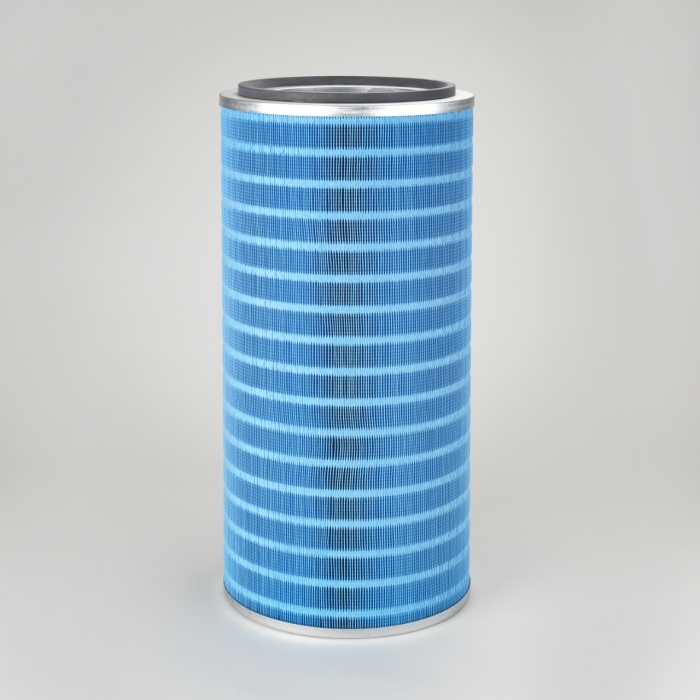

TD-style Cartridge Filter in Ultra-Web Flame Retardant, 324 mm outer diameter x 660 mm long; Special feature: No outer liner with open/closed (13.5mm bolt hole) end caps for ECB, TD and other brands of cartridge collectors

Attributes

Diameter (mm) 324
Inner Diameter (mm) 213
Length (mm) 660
Media #REF!
Media Weight (g/m²) 115
Area (m²) 20.8
Unit Family TD / ECB / DFP / PT1001
Bottom End Cap Design Closed with hole 13.5 mm
Earthed No
Flame Retardant Yes
Top End Cap Design Open
Outer Liner No
Gasket Position Above Top End Cap
End Cap/Liner Material Galvanized Steel
Pleath Height (mm) 51
Number of Pleats 323
Max. Temp (°C) 65
Volume (m³) 0.0959
Weight (kg) 6.24
