2625181-000-440

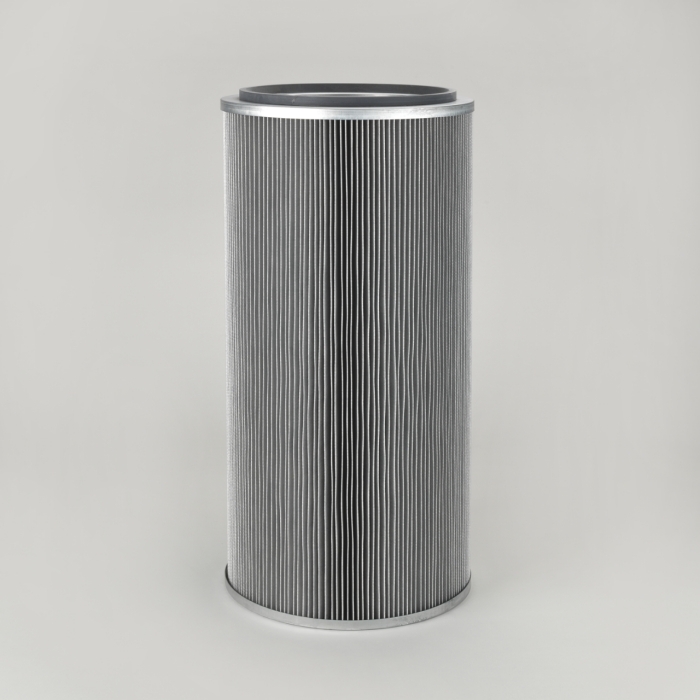

TD-style Cartridge Filter in Ultra-Web Spunbond Anti-Static, 324 mm outer diameter x 660 mm long; Special feature: Earthed with open top end cap and closed bottom end cap with 13.5 mm bolt hole for ECB, TD and other brands of cartridge collectors

Diameter (mm)	324
Inner Diameter (mm)	213
Length (mm)	660
Media	#REF!
Media Weight (g/m²)	260
Area (m²)	10.2
Unit Family	TD / ECB / DFP / PT1001
Bottom End Cap Design	Closed with hole 13.5 mm
Earthed	Yes
Flame Retardant	No
Top End Cap Design	Open
Outer Liner	No
Gasket Position	Above Top End Cap
End Cap/Liner Material	Galvanized Steel
Pleath Height (mm)	49
Number of Pleats	153
Max. Temp (°C)	93
Volume (m³)	0.1136
Weight (kg)	6.292
